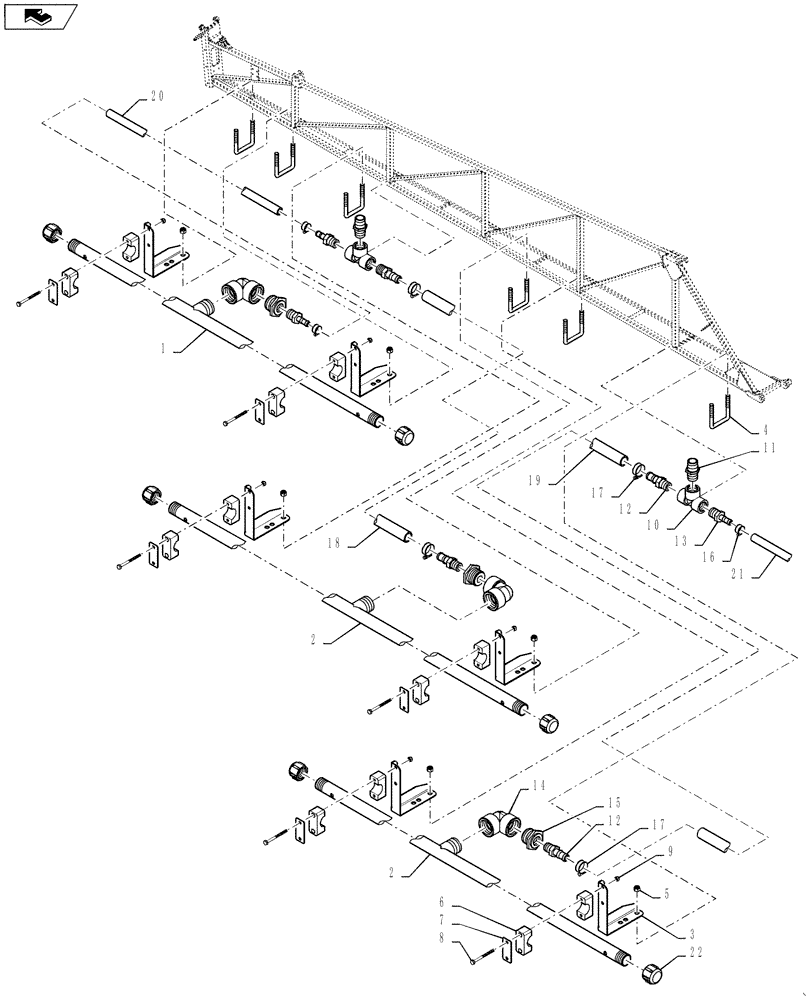

Запчасти Case IH 4420 (09-038) - SPRAYBAR, MID, 20" OFF, 6 SECTION, LO-FLOW Liquid Plumbing

1

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

2

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.

3

BN323957

BRACKET

Spraybar Mount

6шт.

4

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

6шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

6

BN67054

CLAMP

1.315" OD

6шт.

7

BN309483

PLATE

Clamp Top, Single Clamp

6шт.

8

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

9

BN55359

LOCK NUT,1/4"-20, SS

12шт.

10

BN73560

TEE

3/4" NPT, Poly

2шт.

11

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

12

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

4шт.

13

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

3шт.

14

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

3шт.

15

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

3шт.

16

BN324022

HOSE CLAMP

#8, Stainless Steel

3шт.

17

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

18

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

19

BN53859

EPDM 3/4" ID X 13.5"

1шт.

20

BN321050

1/2" X 54" EPDM

1шт.

21

BN54225

HOSE

1/2" X 77" EPDM

1шт.

22

BN73606

CAP

1" NPT, Poly Pipe

6шт.
