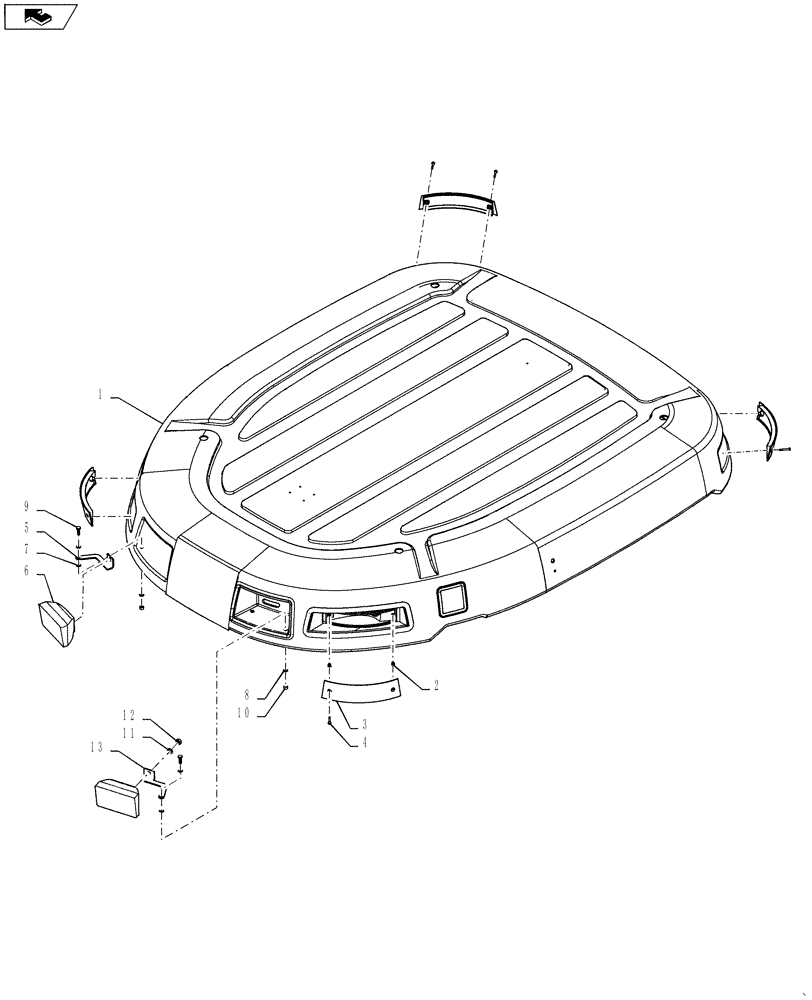

Запчасти Case IH 4420 (02-005) - ROOF GROUP Cab Exterior

1

84130912

ROOF

Cab

1шт.

2

451165A1

THREADED INSERT

Knurled Open

8шт.

3

320246A1

LAMP

Hazard, LF, RR

4шт.

4

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

8шт.

5

353561A1

BRACKET

front right

1шт.

6

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Flood, 80 x 30W, Halogen

2шт.

7

355532A1

WASHER

NYLON

2шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

9991588

NUT,M8 x 1.25, Cl 8

2шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

13

353560A1

BRACKET

left front

1шт.

14

84195649

RUBBER SEAL

Cab Roof Seal, Not Shown

2шт.
