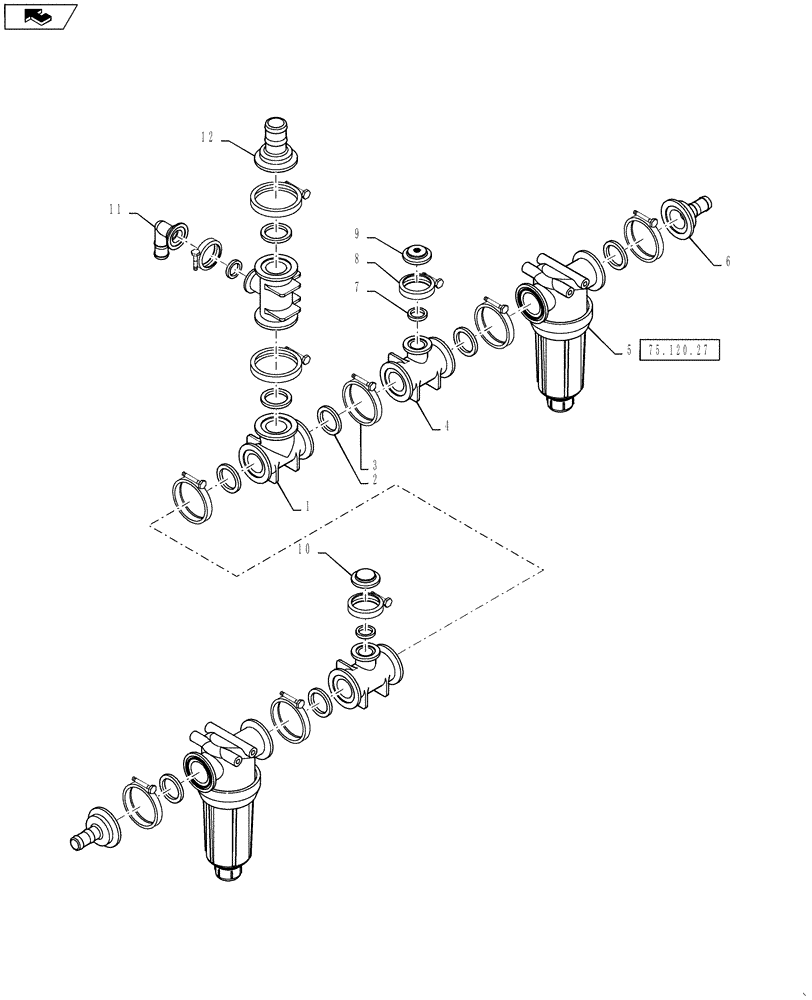

Запчасти Case IH 4420 (09-031) - MANIFOLD GROUP, 7 SECTION, LO-FLOW, 120’ BOOM Liquid Plumbing

1

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

8шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

8шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

3шт.

5

NS

NOT SERVICED

Strainer Plumbing Mount Group

2шт.

See Fig. 09-015

1шт.

6

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

2шт.

7

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

3шт.

8

BN303203

CLAMP,1" Flange

1" Flange

3шт.

9

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

10

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

11

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

1шт.

12

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

1шт.

13

87265492

SCREEN,80 Mesh, SST, Blue

80 Mesh, SS, Blue

2шт.
