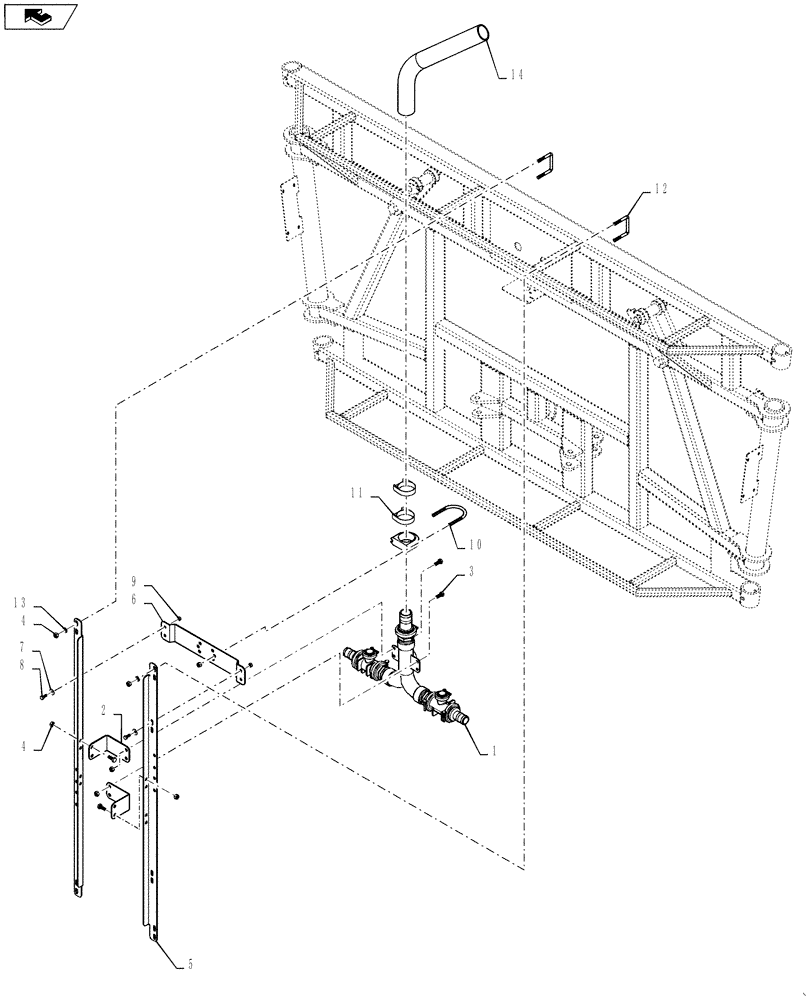

Запчасти Case IH 4420 (09-029) - MANIFOLD SUPPORT GROUP, 5-6 SECTION Liquid Plumbing

1

NS

NOT SERVICED

Manifold Group, 5 and 6 Section

1шт.

See Fig. 09-027

1шт.

2

84174089

BRACKET

3-WAY MANIFOLD, Start Year: 01-JAN-09

2шт.

2

BN325193

BRACKET

3-Way Manifold, Years: -01-JAN-09

2шт.

3

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

5

87267543

SUPPORT

MOUNT, MANIFOLD 778D

2шт.

6

BN325194

BRACKET, SUPPORTING

MOUNT, CLAMP, 5 SECT, CTR

1шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.

11

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

12

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

13

BN50146

WASHER,3/8", Stainless

8шт.

14

BN29564

HOSE

EPDM, 2.00" ID x 13.00'

1шт.
