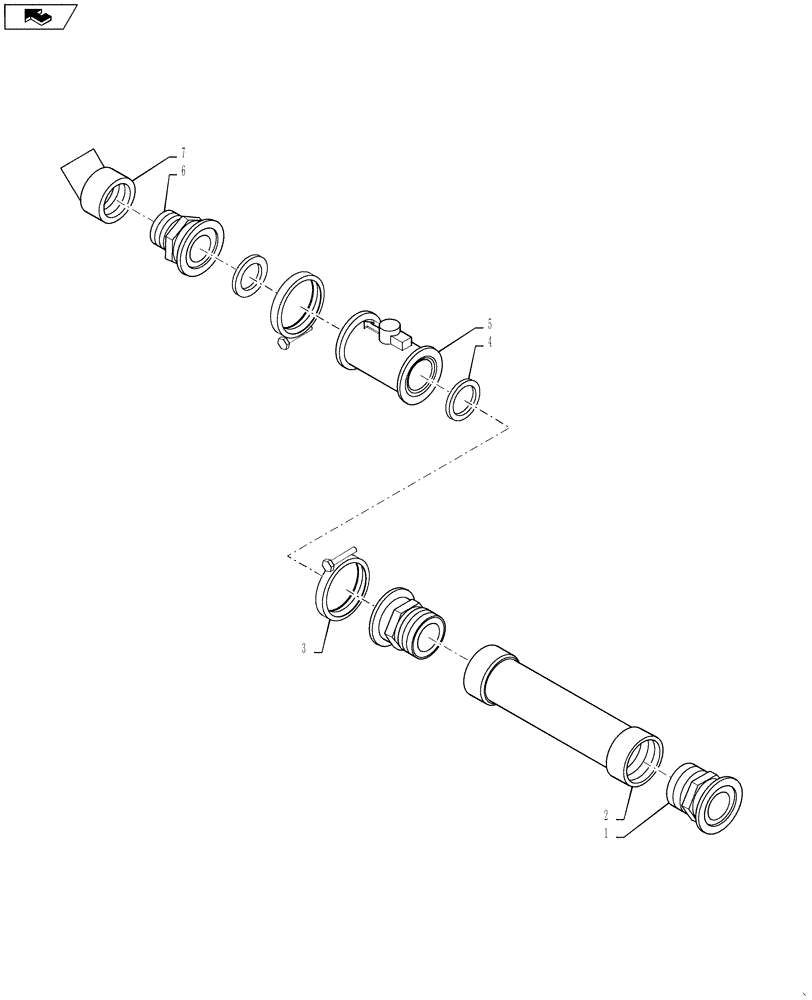

Запчасти Case IH 4420 (09-014) - FLOWMETER PLUMBING, LO-FLOW Liquid Plumbing

1

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

2

87268152

PIPE

Standard

1шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

5

87271267

MEASURING INSTRUMENT

Flowmeter, RFM60P H/P W/D

1шт.

See Fig. 09-018

1шт.

6

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

7

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.
