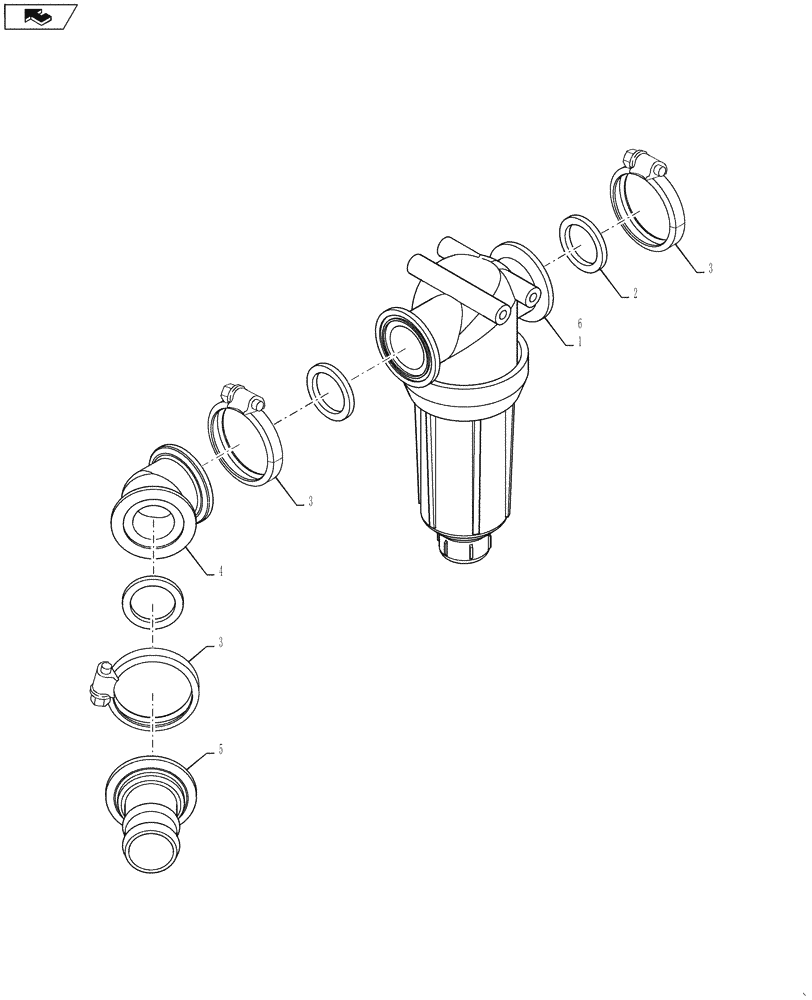

Запчасти Case IH 4420 (09-010) - STRAINER PLUMBING GROUP, LO-FLOW Liquid Plumbing

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

See Fig. 09-011

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

5

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

6

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.
