Запчасти Case IH 4420 (09-004) - BOOM MANIFOLD VALVE, 5-6 SECTION BOOM, ALL SECTION CONTROL, 1.25" BALL ELECTRIC Liquid Plumbing

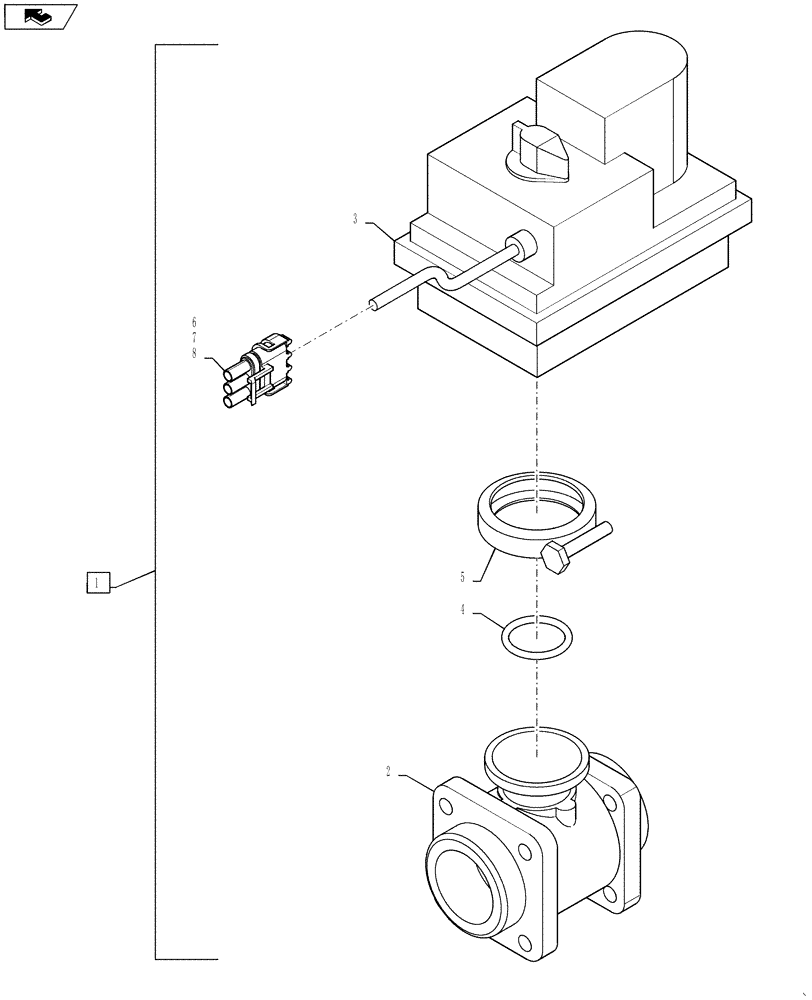

Схема запчастей Case IH 4420 - (09-004) - BOOM MANIFOLD VALVE, 5-6 SECTION BOOM, ALL SECTION CONTROL, 1.25" BALL ELECTRIC Liquid Plumbing
8
7
5
3
1
2
6
4
home

Артикул

Название

Примечание

Количество

1

87268179

VALVE

1.25" Ball, Electric, Boom Shut Off Valve, Complete

1шт.

2

87268180

VALVE

1.25 Ball Sub Assembly

1шт.

3

87268181

MOTOR

3/4 Second, 3 Wire, With Connector

1шт.

4

87268182

O-RING,1.109" ID x 1.387" OD x 0.139"

216 EPDM

1шт.

5

BN303203

CLAMP,1" Flange

1" Flange

1шт.

6

245484C1

ELEC CONNECTOR,3 Pin

Plastic , 3 Pin

1шт.

7

225125C1

SEAL

Seal 14-16AWG

3шт.

8

225119C1

TERMINAL

14-16AWG

3шт.

Выбрано товаров: 8
