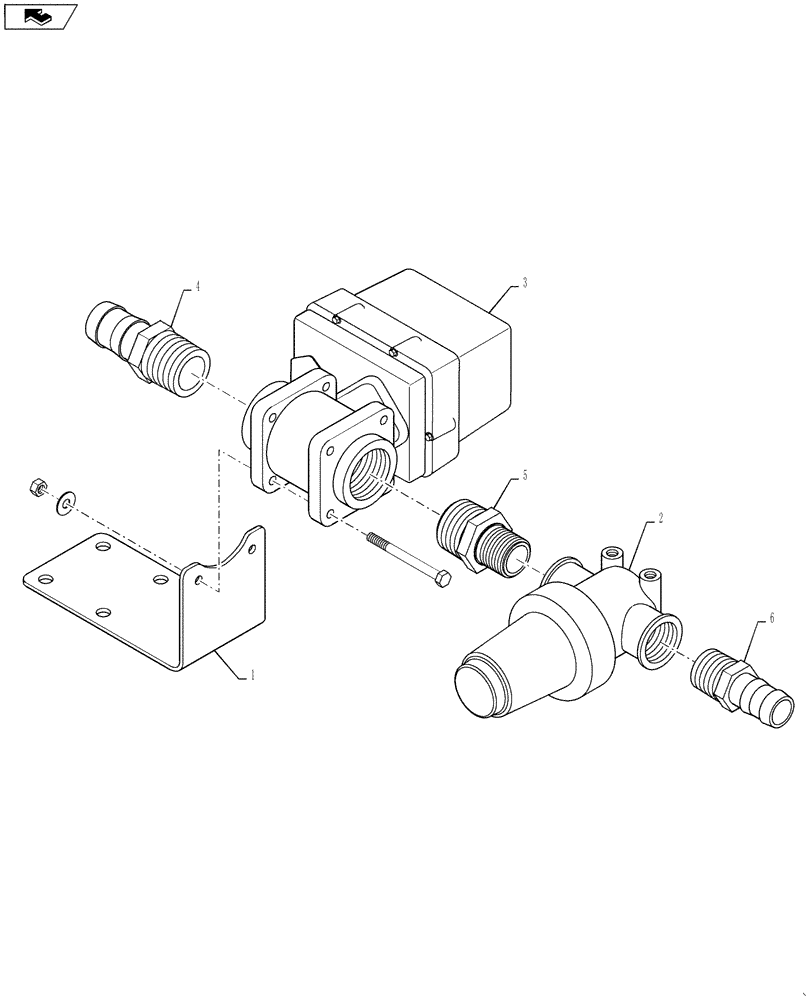

Запчасти Case IH 4420 (09-001) - VALVE PLUMBING GROUP, 5 & 6 SECTION Liquid Plumbing

1

BN319996

BRACKET

NPT BALL VALVE

1шт.

2

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig. 09-012

1шт.

3

87268179

VALVE

1.25" Ball, Electric

1шт.

See Fig. 09-004

1шт.

4

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

6

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

1шт.
