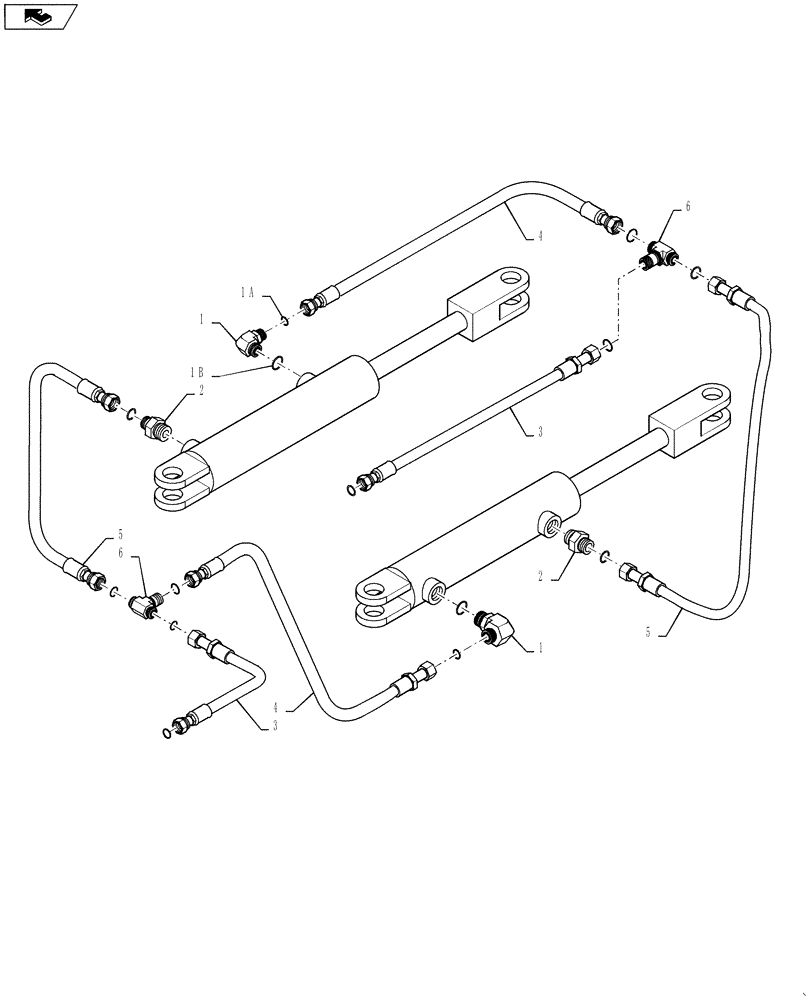

Запчасти Case IH 4420 (06-050) - BOOM HITCH HYDRAULIC GROUP, 120 Hydraulic Plumbing

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

3

BN313336

HOSE

-6 X 30"

2шт.

4

86986082

HOSE

6 x 50"

2шт.

5

BN313337

HOSE

ASSY, -6 X 50"

2шт.

6

BN302512

FITTING

6MOR-6MOR-6MOR

2шт.
