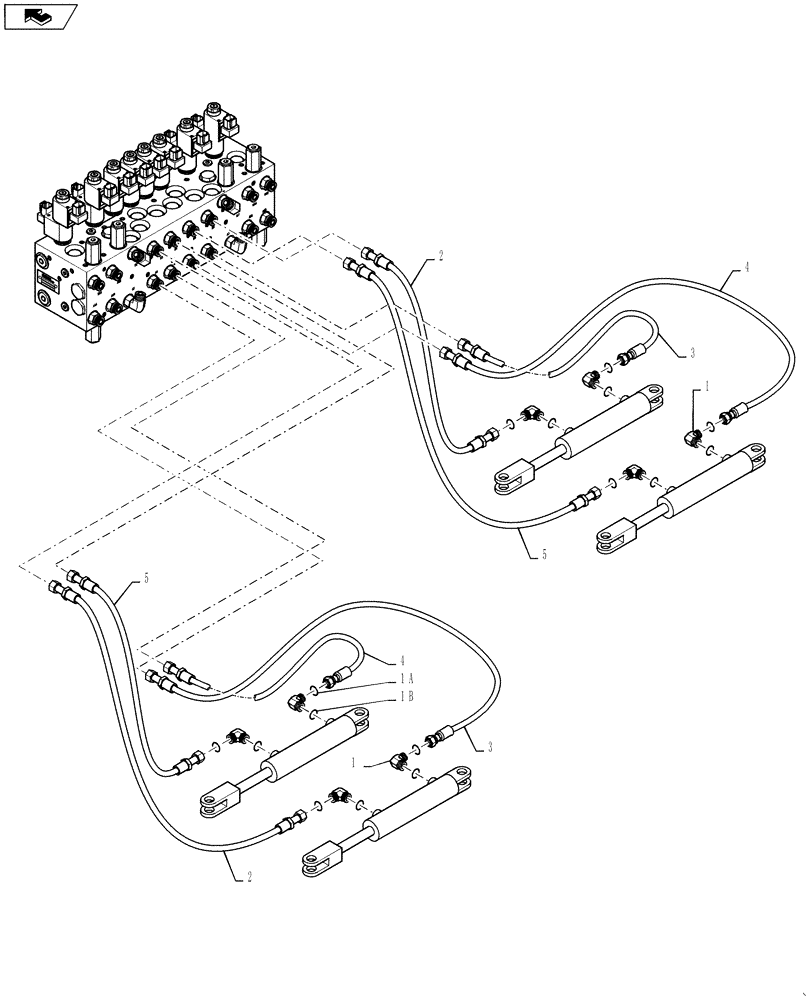

Запчасти Case IH 4420 (06-048[01]) - HYDRAULIC OUTER BOOM, 120 BOOM, AUTO FOLD, BEGINNING 01/2009, BSN YAT029776 Hydraulic Plumbing

1

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

8шт.

1a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

87600247

HOSE

6 x 330"

2шт.

3

87600246

HOSE

6 x 310"

2шт.

4

87471716

HYDRAULIC HOSE,9.53mm ID x 13843mm L, SAE 100R17

-6 X13843 MM

2шт.

5

87471717

HYDRAULIC HOSE,9.53mm ID x 14351mm L, SAE 100R17

-6 X 14351 MM

2шт.
