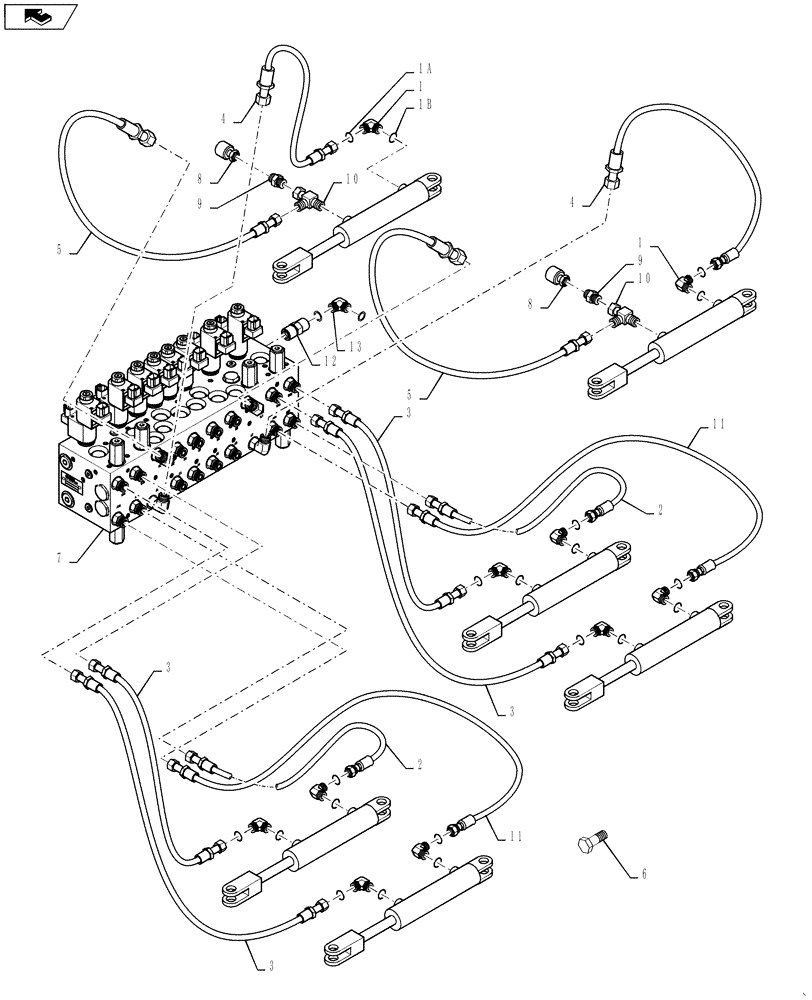

Запчасти Case IH 4420 (06-047) - HYDRAULIC INNER BOOM, 120 BOOM, AUTO FOLD, BEGINNING 01/2009 Hydraulic Plumbing

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

10шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

342591A1

HOSE ASSY.

6 x 40"

2шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

-6 X 64

4шт.

4

BN307875

HOSE ASSY.

2шт.

5

BN307872

HOSE ASSY.

2шт.

6

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

7

87749947

VALVE

8-Bank, With Fittings (See Fig 06-051)

1шт.

8

87585943

ACCUMULATOR

10 CU IN HYDAC

1шт.

9

BN314785

SWIVEL CONNECTION

PARK6 F65OL-S

2шт.

10

BN302583

FITTING

6MOR-6MOR-6MBX

2шт.

11

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

-6 X 59

2шт.

12

84208068

CHECK VALVE

1 PSI

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, 8 MOR - 8 FORX90

1шт.
