(06-039[02]) - VALVE, 2-BANK WITH FITTINGS, ENDING 01/2009

Запчасти Case IH 4420 (06-039[02]) - VALVE, 2-BANK WITH FITTINGS, ENDING 01/2009 Hydraulic Plumbing

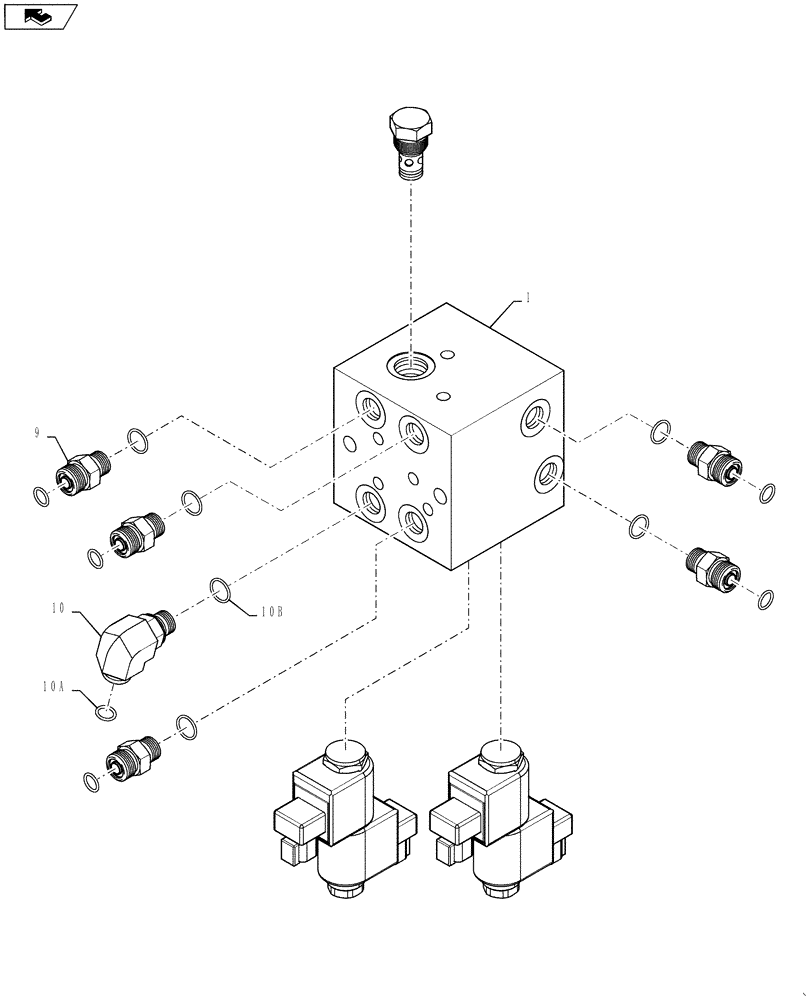

Схема запчастей Case IH 4420 - (06-039[02]) - VALVE, 2-BANK WITH FITTINGS, ENDING 01/2009 Hydraulic Plumbing
10b
10
home
10a
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270617

VALVE

2 Bank Without Fittings

1шт.

See Fig. 06-040-02

1шт.

9

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

5шт.

10

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

16шт.

10a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.
