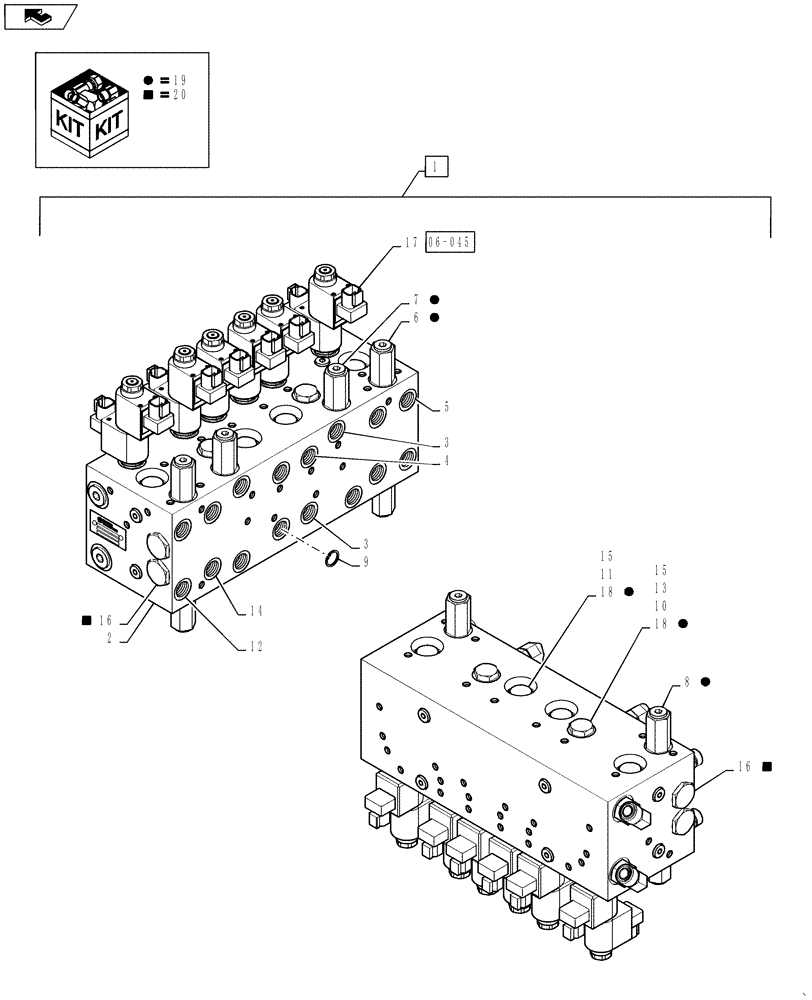

Запчасти Case IH 4420 (06-037[01]) - VALVE, 6-SECTION, W/O FITTINGS, BEGINNING 01/2009 Hydraulic Plumbing

1

87746153

CONTROL VALVE

6 Bank W/Out Fittings

1шт.

Includes Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

87758332

ORIFICE

Disk .059

4шт.

4

87758331

ORIFICE

DISK .052

2шт.

5

87758330

ORIFICE

Disk .041

4шт.

6

87758329

VALVE

Relief, 200 PSI

2шт.

7

87758328

VALVE

Relief, 1500 PSI

2шт.

8

87758327

VALVE

Relief, 3000 PSI

2шт.

9

87758326

RETAINER

Snap Ring, Valve

10шт.

10

87758325

PISTON

Valve Bank

2шт.

11

87758324

PISTON

Valve Bank

4шт.

12

87758322

ORIFICE

.047

2шт.

13

87758321

ORIFICE

.071

2шт.

14

84247013

ORIFICE

.042

2шт.

15

87758320

RING

Backup, Teflon

12шт.

16

87473321

VALVE

Shuttle

4шт.

17

87758319

SOLENOID VALVE

With Coil

6шт.

18

87758336

VALVE

Check

12шт.

19

87472226

SEAL KIT

4шт.

20

87746970

SEAL KIT

1шт.
