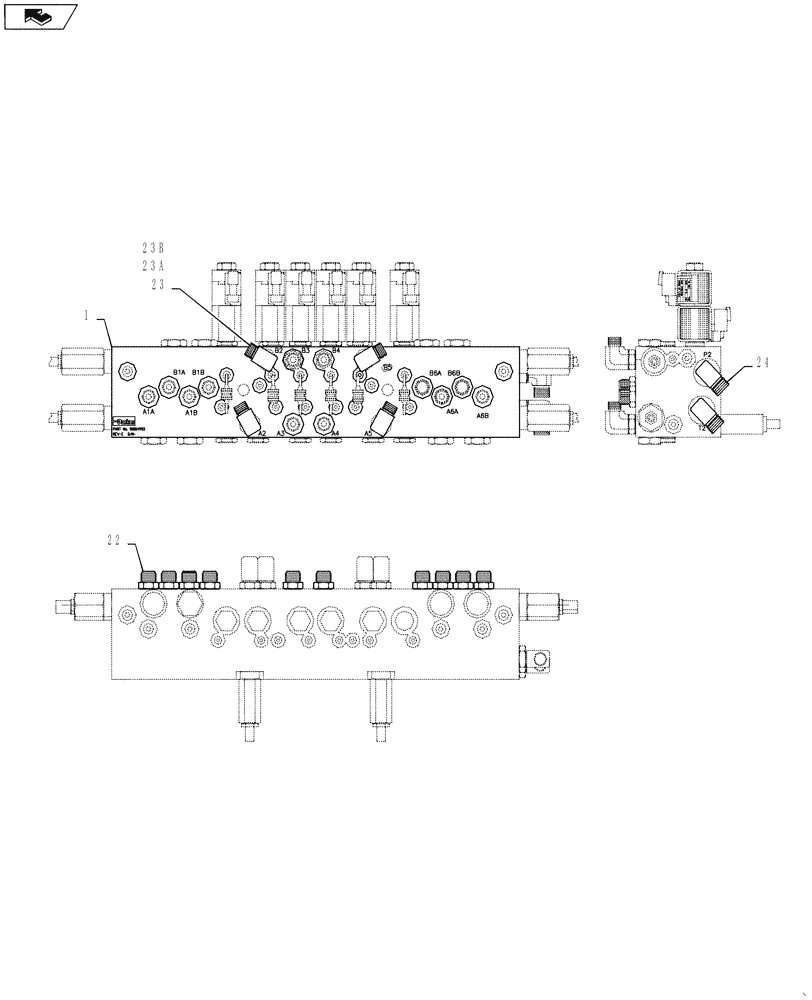

Запчасти Case IH 4420 (06-036[02]) - VALVE, 6-SECTION, W/FITTINGS, ENDING 01/2009 Hydraulic Plumbing

1

87270619

VALVE

6 Bank Without Fittings

1шт.

See Fig. 06-037

1шт.

22

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

12шт.

23

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

23a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

23b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

24

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

2шт.
