(06-036[01]) - VALVE, 6-SECTION, W/FITTINGS, BEGINNING 01/2009

Запчасти Case IH 4420 (06-036[01]) - VALVE, 6-SECTION, W/FITTINGS, BEGINNING 01/2009 Hydraulic Plumbing

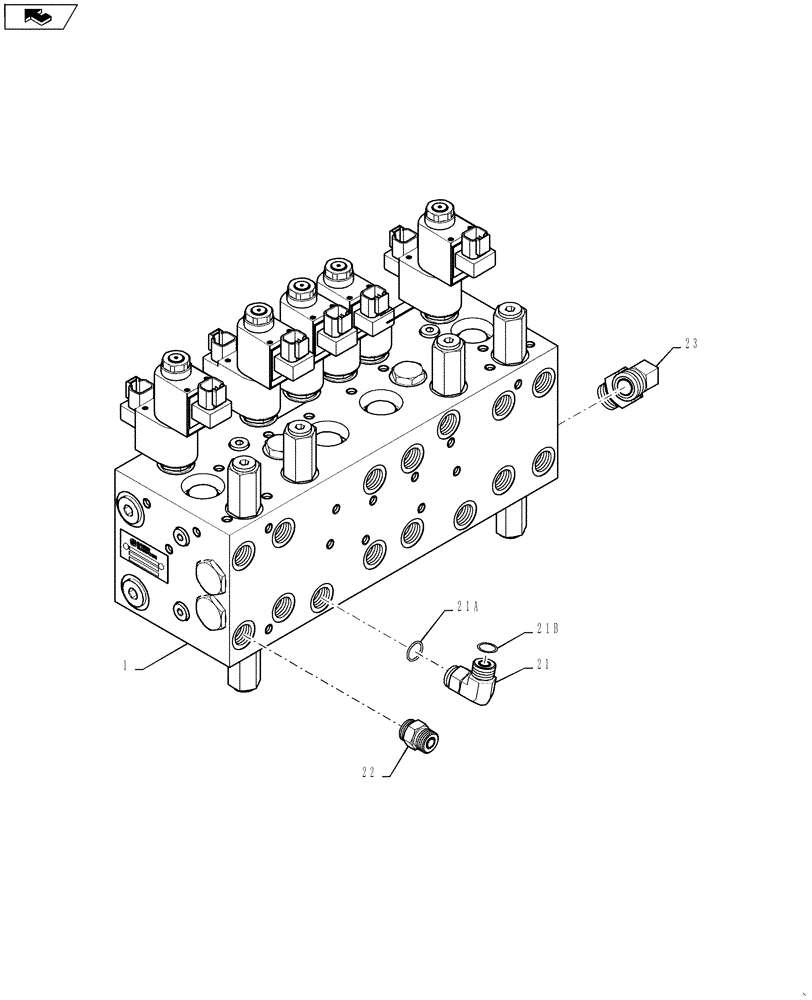

Схема запчастей Case IH 4420 - (06-036[01]) - VALVE, 6-SECTION, W/FITTINGS, BEGINNING 01/2009 Hydraulic Plumbing
1
23
21a
home
22
21b
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87746153

CONTROL VALVE

6-Bank Without Fittings

1шт.

See Fig. 06-037

1шт.

21

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

21a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

22

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

12шт.

23

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

2шт.
