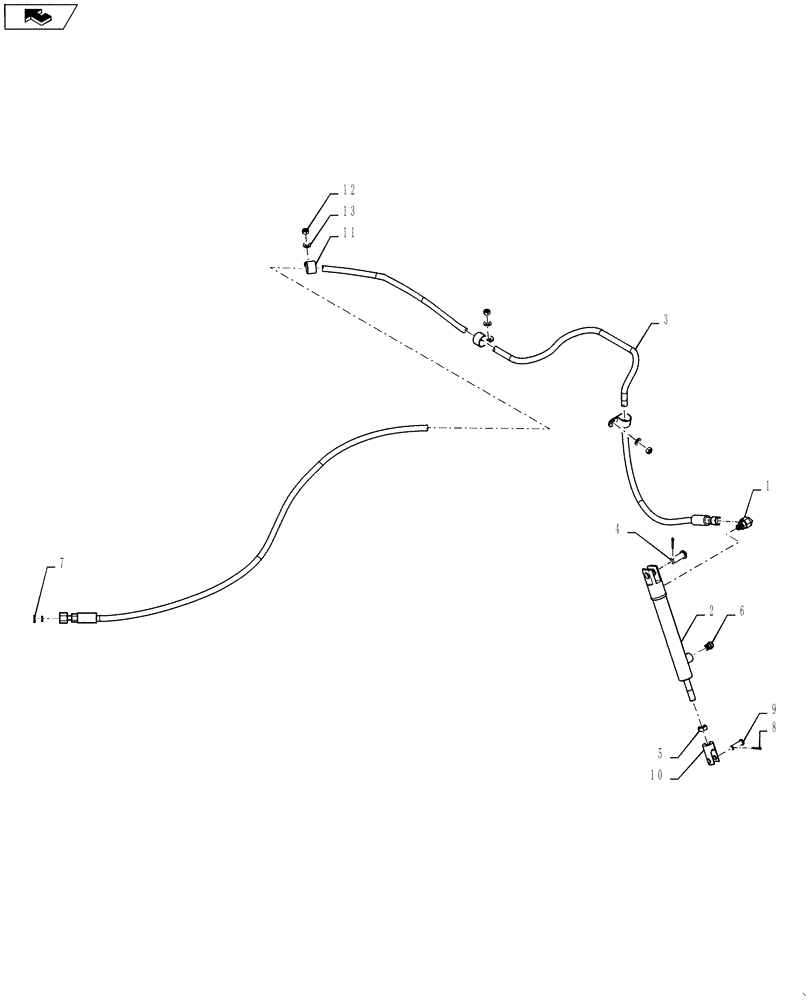

Запчасти Case IH 4420 (06-032) - LADDER, HYDRAULIC LIFT Hydraulic Plumbing

1

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

1шт.

2

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

See Fig. 07-012

1шт.

3

84127939

HOSE ASSY.

ASSY,-4 X 3098 MM

1шт.

4

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

5

BN50075

NUT

1/2"-20, Stainless Steel

1шт.

6

87267314

BREATHER

Sintered -4 SAE

1шт.

7

BN313268

ORIFICE

.042 -6 Disk

1шт.

8

80756

COTTER PIN,1/8" x 3/4"

2шт.

9

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

10

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

11

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

12

9991588

NUT,M8 x 1.25, Cl 8

3шт.

13

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

3шт.
