Запчасти Case IH 4420 (06-030) - OIL TANK GROUP Hydraulic Plumbing

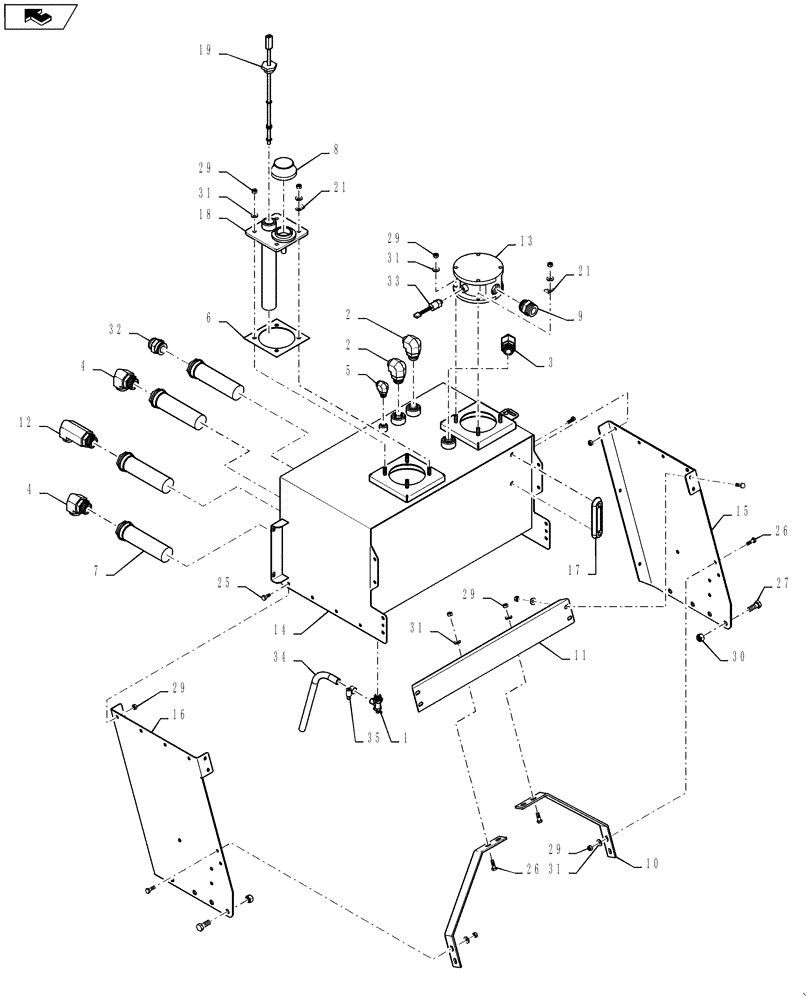

Схема запчастей Case IH 4420 - (06-030) - OIL TANK GROUP Hydraulic Plumbing
30
32
10
26
17
9
21
13
2
12
35
31
6
home
34
18
29
7
33
15
29
31
4
29
29
27
16
2
14
4
31
26
3
1
29
11
19
25
21
8
5
31

Артикул

Название

Примечание

Количество

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

2

BN302570

ELBOW

1-3/16-12 ORFS x 1-5/16-12 ORB

2шт.

3

BN302574

ELBOW

1-7/16-12 ORFS x 1-5/16-12 ORB

1шт.

3a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

O-ring boss end

1шт.

3b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

4

BN302577

ELBOW

1-11/16-12 ORFS x 1-5/8-12 ORB

3шт.

5

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

6

87272095

GASKET,3.17mm Thk

COVER PLATE

1шт.

7

BN303528

STRAINER ASSY.

-32MBx-20FB, 100

4шт.

8

BN304339

VALVE

PRESS VALVE

1шт.

9

BN302660

FITTING

1-11/16-12 ORFS x 1-5/8-12 ORB

1шт.

10

343915A1

SUPPORT

TANK LEG

2шт.

11

86986999

CHANNEL

Hydraulic Tank

1шт.

12

BN302425

ELBOW

1-11/16-12 ORFS x 1-5/8-12 ORB, Long

1шт.

13

87267807

HYDRAULIC OIL FILTER

Oil In-Tank SPX

1шт.

See Fig. 06-031

1шт.

14

87272073

TANK

Oil, 778D

1шт.

15

87266518

MOUNTING PLATE

Hydraulic Tank, LH

1шт.

16

87266519

MOUNTING PLATE

Hydraulic Tank, RH

1шт.

17

BN322594

GAUGE

sight with temperature

1шт.

18

87272099

PLATE

Temp Level

1шт.

19

BN323888

INDICATOR

Multi-Level And Temperature Oil Sender

1шт.

21

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

25

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

26

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

27

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

29

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

30

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

8шт.

31

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

20шт.

32

BN302660

FITTING

1-11/16-12 ORFS x 1-5/8-12 ORB

1шт.

33

87267808

PRESSURE SWITCH

25 psi N/C

1шт.

34

129096A1

HOSE

Reservoir Drain

1шт.

35

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

Выбрано товаров: 35
