Запчасти Case IH 4420 (06-029[01]) - STEEL LINES GROUP Hydraulic Plumbing

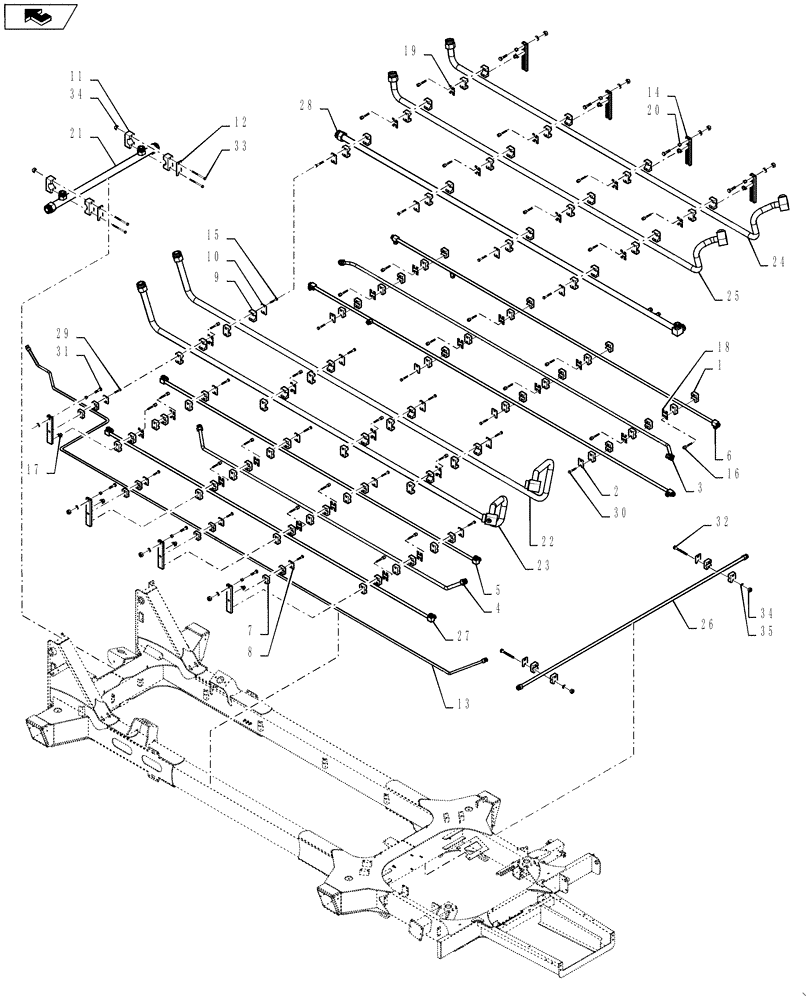

Схема запчастей Case IH 4420 - (06-029[01]) - STEEL LINES GROUP Hydraulic Plumbing
19
4
27
5
17
8
2
11
20
28
23
12
21
35
22
15
30
3
34
6
29
26
25
31
home
24
32
18
14
34
9
10
1
33
13
7
16

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

26шт.

2

BN29785

PLATE

Cover, Single, 1/2" Tube

10шт.

3

BN305996

TUBE

STR & DYN BRAKE PRS

1шт.

4

BN305997

TUBE

STEERING RETURN

1шт.

5

BN306003

TUBE

Motor Servo Control

1шт.

6

BN306004

TUBE

AXLE ADJUST

2шт.

7

BN307078

CLAMP

PAIR-3/8 TUBE

4шт.

8

BN307079

PLATE

TOP, CLAMP-3/8" TUBE

4шт.

9

BN307080

CLAMP

PAIR- 1"TUBE

20шт.

10

BN307081

PLATE

TOP, CLAMP-1" TUBE

8шт.

11

BN307082

CLAMP

PAIR 1.25" TUBE

2шт.

12

BN307083

PLATE

TOP, CLAMP-1.25" TUBE

2шт.

13

BN309602

BRAKE LINE

Return

1шт.

14

BN313247

RAIL

STD DUTY

8шт.

15

87342609

BOLT

Hex, 1/4"-20 x 1 3/4", G5

16шт.

16

BN313261

BOLT

Stacking 1/4"-20 x 1.12

56шт.

17

BN313262

NUT

C-RAIL (1/4"-20)

40шт.

18

BN313264

PLATE

SAFETY-1/2" TUBE

16шт.

19

BN313265

PLATE

Safety -1" tube

12шт.

20

BN316101

SPACER

C-RAIL, HYD. TUBE

8шт.

21

BN319659

TUBE

STL, RETURN MANIFOLD

1шт.

22

87570217

HYD TUBE,1" OD

Drive Pressure "B"

1шт.

23

87570218

HYD TUBE,1" OD

Drive Pressure "A"

1шт.

24

87570219

HYD TUBE,1" OD

Drive Pressure "A"

1шт.

25

87570220

HYD TUBE,1" OD

Drive Pressure "B"

1шт.

26

BN324491

TUBE

STEEL, HYD LINE

1шт.

27

BN324574

TUBE

PARK BRAKE

1шт.

28

BN325316

TUBE

CASE DRAIN & RETURN

1шт.

29

87342607

BOLT

Hex, 1/4"-20 x 1 1/4", G5

8шт.

30

87342608

BOLT

Hex, 1/4"-20 x 1 1/2", G5

16шт.

31

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

32

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

33

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

4шт.

34

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

16шт.

35

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

12шт.

Выбрано товаров: 35
