Запчасти Case IH 4420 (06-028) - MANIFOLD GROUP Hydraulic Plumbing

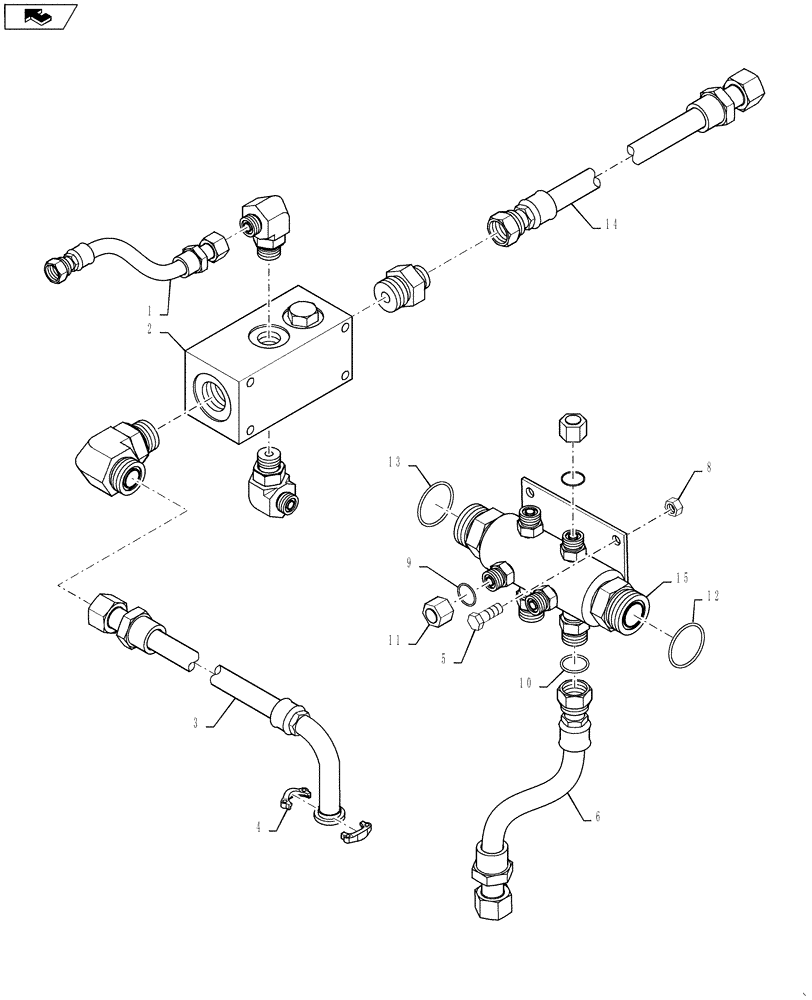

Схема запчастей Case IH 4420 - (06-028) - MANIFOLD GROUP Hydraulic Plumbing
4
13
3
1
10
home
12
8
11
5
6
14
9
2
15

Артикул

Название

Примечание

Количество

1

343293A1

HOSE

6 x 24”

1шт.

2

BN323902

MANIFOLD

PRESS. COMP, SEE FIG 06-033

1шт.

3

86986084

HOSE,19.05mm ID x 2489mm L, SAE 100R17

12 x 98"

1шт.

4

BN316600

KIT

3/4 SPLIT FLANGE CO 61

1шт.

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

Included in Ref 4

1шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

6

86986371

HOSE

8 x 154"

1шт.

8

9991588

NUT,M8 x 1.25, Cl 8

2шт.

9

BN305412

O-RING

FOR -6 FFOR

4шт.

10

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR -8 FFOR

2шт.

11

BN305426

CAP

-6 FFOR

3шт.

12

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP 021 BUNA-N

1шт.

13

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

-ARP STANDARD #018

1шт.

14

BN309867

HOSE

-08 X 142

1шт.

15

BN307639

MANIFOLD

- HYD. RETURN

1шт.

Выбрано товаров: 15
