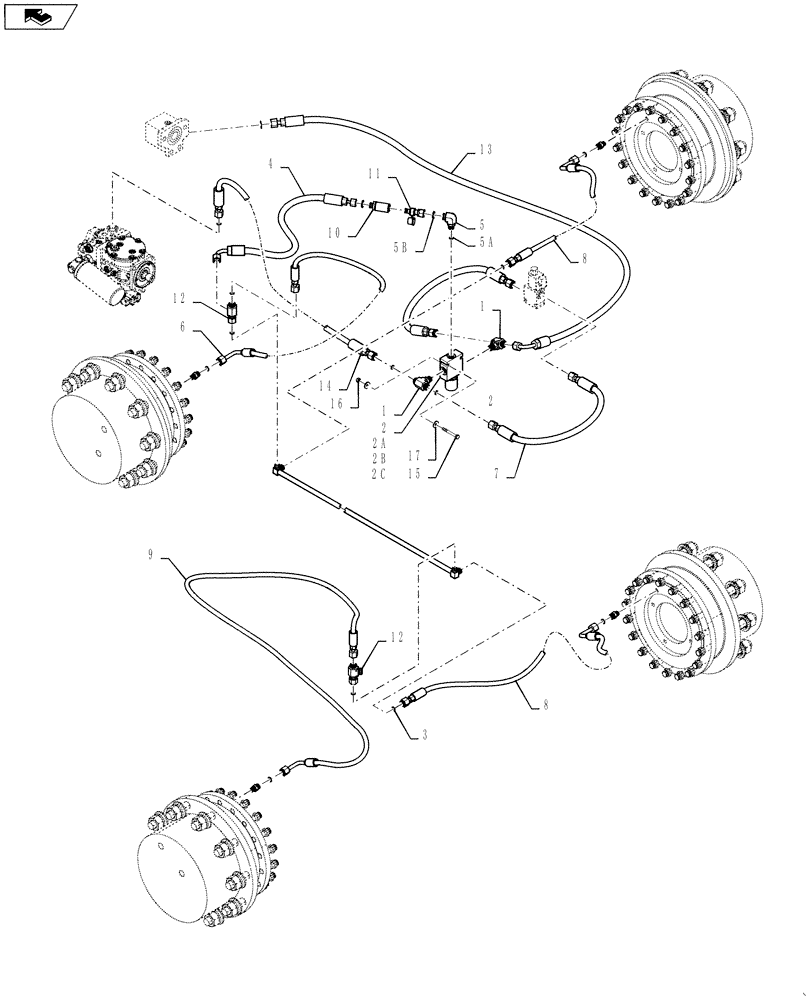

Запчасти Case IH 4420 (06-027) - PARK BRAKE GROUP Hydraulic Plumbing

1

BN302536

FITTING

6MOR-6MBX-6MOR, PLATE PER

2шт.

2

87271739

VALVE SECTION

Brake, With Deutsch

1шт.

2a

431548A1

VALVE

3W/2P Solenoid Cartridge

1шт.

Service Parts For Ref. 2

1шт.

2b

87269968

COIL

1шт.

Service Parts For Ref. 2

1шт.

2c

87269976

SEAL KIT

SK08-3X-MM

1шт.

Service Parts For Ref. 2

1шт.

3

BN305412

O-RING

FOR -6 FFOR

4шт.

4

87739926

HYDRAULIC HOSE,9.53mm ID x 610mm L, SAE 100R17

ASSY, -6 X 610MM

1шт.

5

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

6

BN325851

HOSE ASSY.

-4 X 141"

1шт.

7

BN319237

HOSE

ASSY,-6 X 17

2шт.

8

BN325853

HOSE

- 4 x 168"

2шт.

9

86986091

HOSE

4 x 135"

1шт.

10

BN307992

COUPLING

DIAGNOSTIC -4MNPT

1шт.

11

BN307993

NIPPLE, LUBE

NIPPLE DIAGNOSTIC -6FFOR

1шт.

12

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

13

87645589

HOSE

ASSY -6 X 90

1шт.

14

BN307838

HOSE ASSY.

1шт.

15

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

2шт.

16

353308

NUT,M6 x 1.0, Cl 8

2шт.

17

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.
