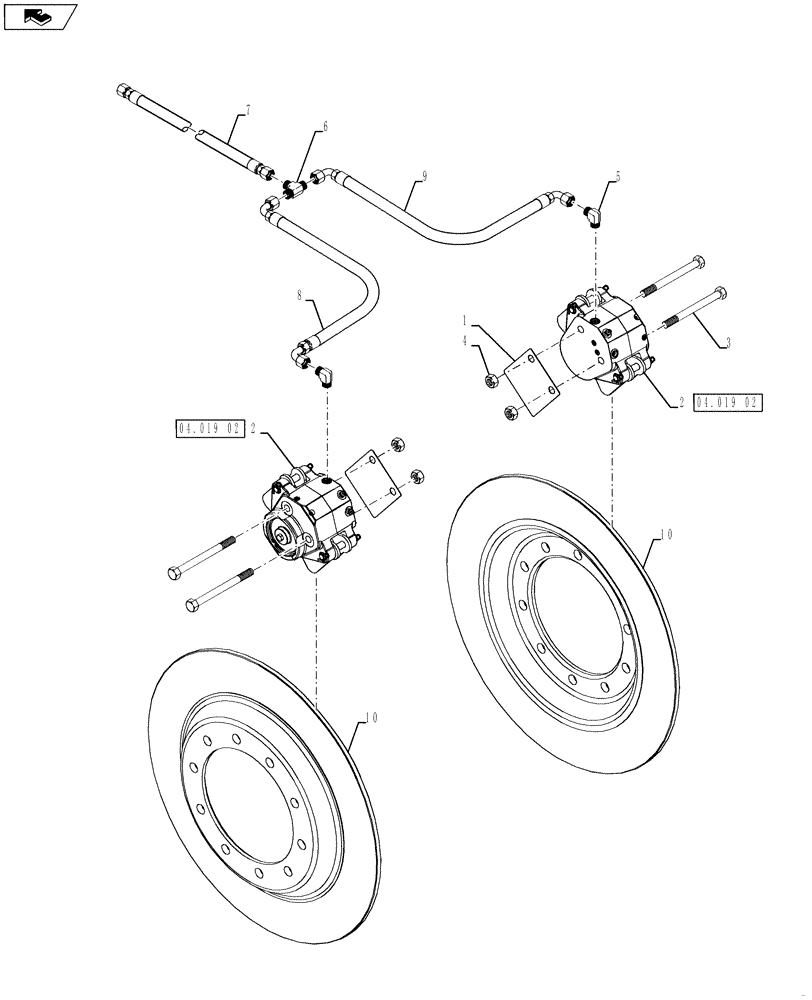

Запчасти Case IH 4420 (06-026[02]) - DYNAMIC BRAKE GROUP, USED ON SN YBT029141 AND AFTER Hydraulic Plumbing

1

84340467

SPACER

Brake Caliper

2шт.

2

87493788

BRAKE CALIPER

Disc Brake

2шт.

3

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

4

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

5

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

2шт.

6

BN302511

FITTING

4MOR-4MOR-4MOR

1шт.

7

87269302

HOSE

-4 x 70"

1шт.

8

BN307829

HOSE ASSY.

-4 x 3924.3mm

1шт.

9

BN324552

HOSE ASSY.

-4 x 3556mm

1шт.

10

BN301666

BRAKE DISC

27.875" Dia.

2шт.
