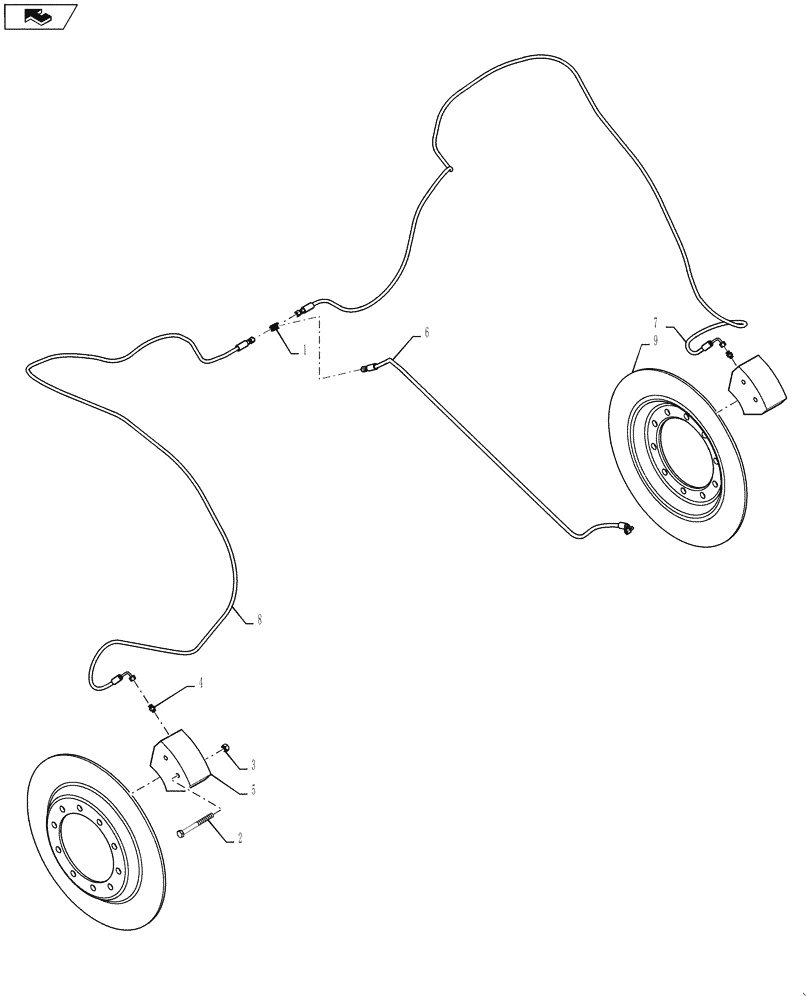

Запчасти Case IH 4420 (06-026[01]) - BRAKE GROUP, DYNAMIC, BSN YBT029141 Hydraulic Plumbing

1

BN302511

FITTING

4MOR-4MOR-4MOR

1шт.

2

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

3

832-46416

NUT,M16 x 2, Cl 8

4шт.

4

BN306947

ADAPTER

4MB-4MFFOR LONG

2шт.

5

BN307717

PACKAGE

Brake Caliper Assembly

2шт.

See Fig. 04-019

1шт.

6

87269302

HOSE

04 x 70"

1шт.

7

BN307829

HOSE ASSY.

1шт.

8

BN324552

HOSE ASSY.

-4 X 140"

1шт.

9

BN301666

BRAKE DISC

27.875" Dia.

2шт.
