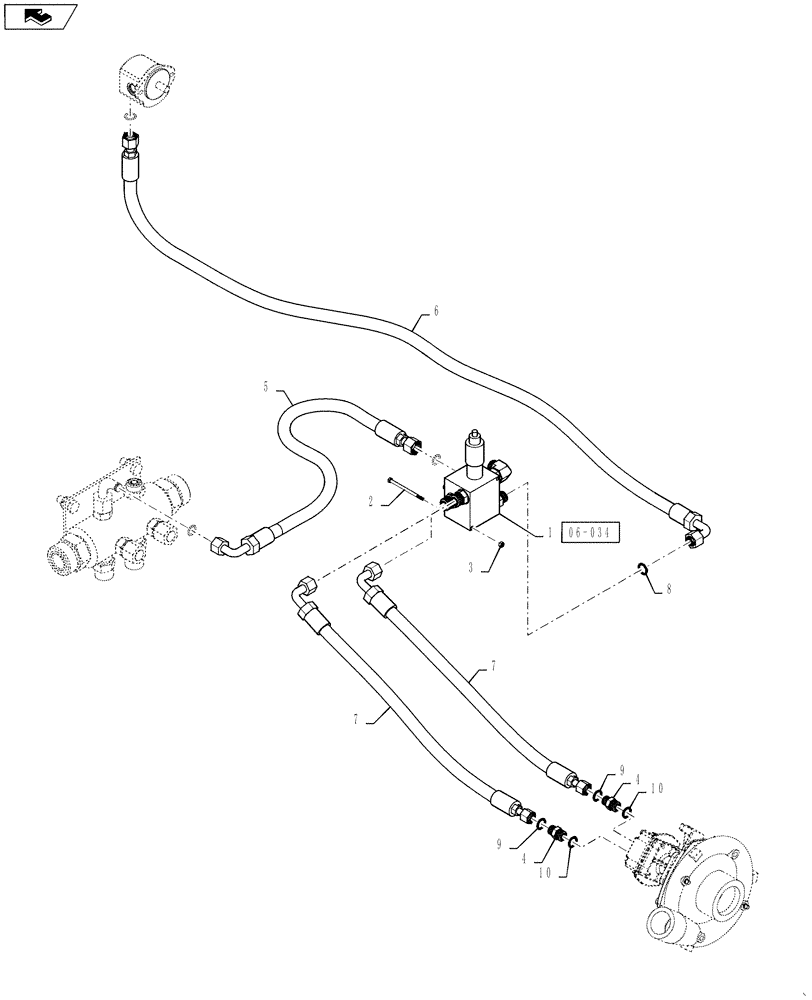

Запчасти Case IH 4420 (06-024) - PRODUCT PUMP HYDRAULIC GROUP Hydraulic Plumbing

1

342100A1

VALVE

Product, With Fittings

1шт.

See Fig. 06-034

1шт.

2

86505841

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

2шт.

3

353308

NUT,M6 x 1.0, Cl 8

2шт.

4

BN307930

ADAPTER

8 MB-10 MFFOR

2шт.

5

BN324672

HOSE ASSY.

12 X 36"

1шт.

6

86986097

HOSE

12 x 90"

1шт.

7

87267699

HOSE

12 x 32"

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
