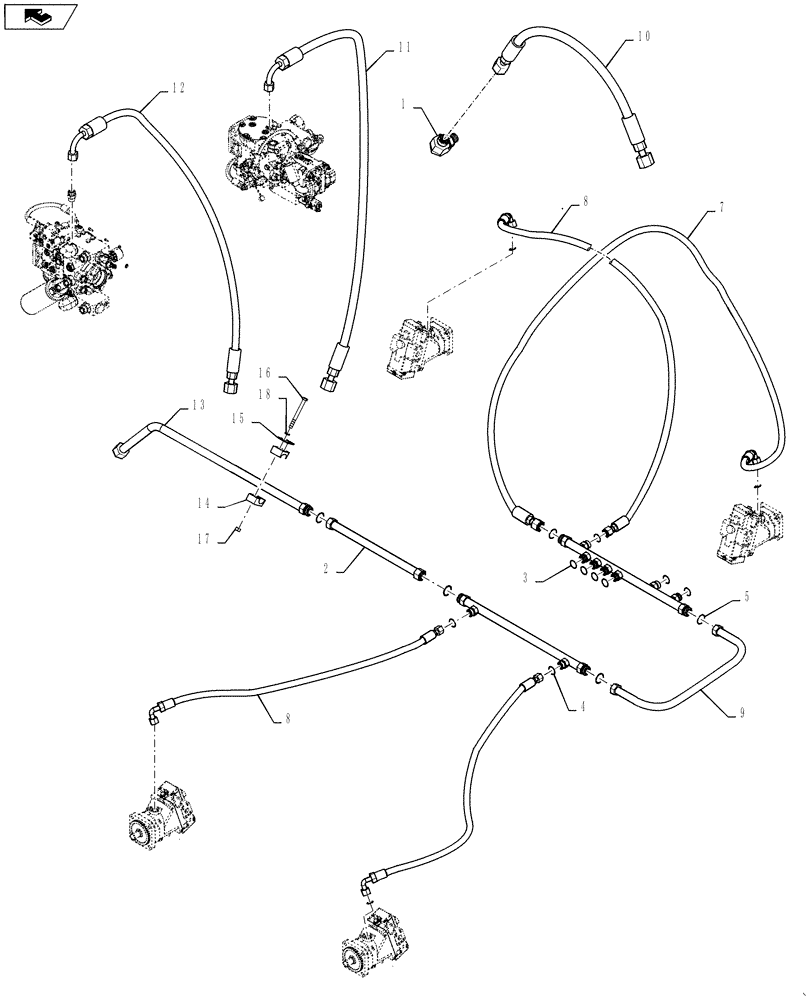

Запчасти Case IH 4420 (06-023) - CASE DRAIN HYDRAULIC GROUP Hydraulic Plumbing

1

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

2

87272402

HOSE

ASSY, -16 X 75"

1шт.

3

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR -4 FFOR

6шт.

4

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

STANDARD #018

4шт.

5

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

3шт.

7

86986086

HOSE

12 x 160"

1шт.

8

BN307807

HOSE ASSY.,19.05mm ID x 3657.6mm L, SAE 100R1

3шт.

9

BN307811

HOSE ASSY.

-#16 X 35"

1шт.

10

BN312045

HOSE

-08 X 46

1шт.

11

343884A1

HOSE

12 x 36”

1шт.

12

87270158

HOSE

12 x 31"

1шт.

13

87270166

TUBE,25.40 mm OD x 224, 635 mm L

STEEL LINE CASE RETURN

1шт.

14

BN307080

CLAMP

PAIR- 1"TUBE

1шт.

15

BN307081

PLATE

TOP ,CLAMP-1"TUBE

1шт.

16

87342146

BOLT,Hex, M6 x 60mm, Cl 8.8

Hex, M6 x 60 Full Thd, CL8.8 DOR

2шт.

17

353308

NUT,M6 x 1.0, Cl 8

2шт.

18

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.
