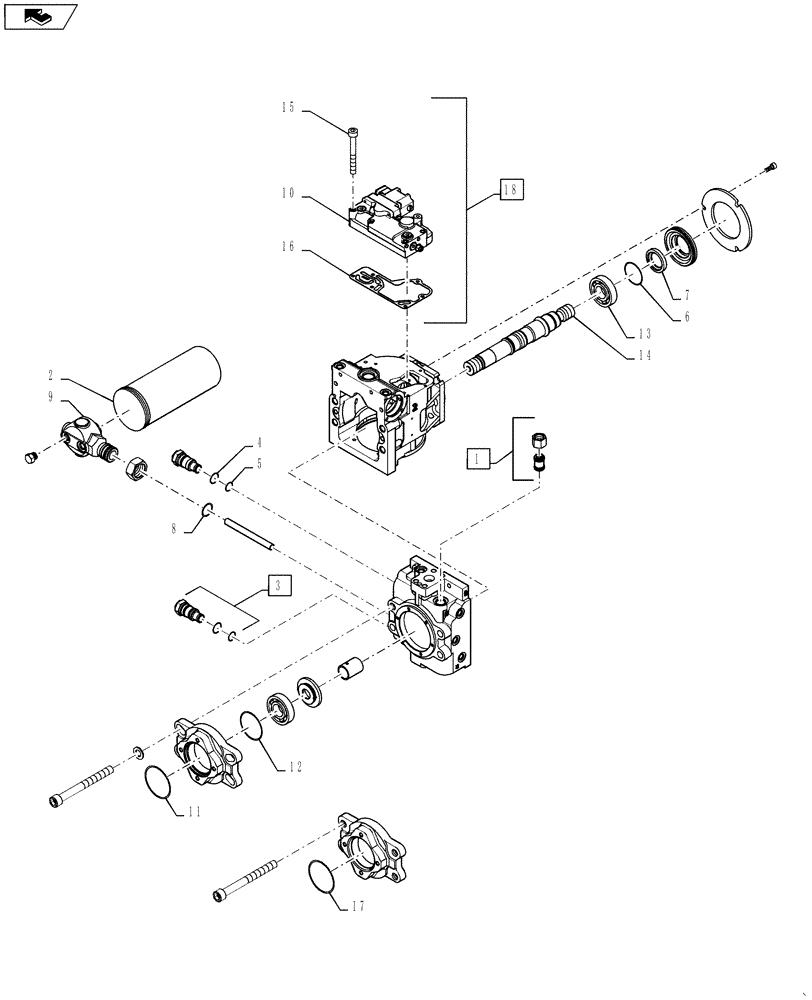

Запчасти Case IH 4420 (06-019) - PUMP, HYDROSTATIC S90 W/13T Hydraulic Plumbing

1

BN300952

KIT

Charge Relief

1шт.

2

N14232

FILTER

Element, Spin On

1шт.

3

BN65540

VALVE

multi-function, 90S

2шт.

4

BN65541

O-RING

M/F Valve Upper

2шт.

5

BN65542

O-RING

M/F Valve Lower

2шт.

6

BN65544

O-RING

Shaft, 75 CC

1шт.

7

BN65546

SEAL

Lip, Shaft 75 CC

1шт.

8

BN68470

O-RING

Filter Head, 90 Pump

1шт.

9

BN69597

FILTER HEAD

FILTER T, 90 SE, HEAD

1шт.

10

87575874

CONTROL

edc

1шт.

11

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

12

BN312705

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

Auxiliary Flange

1шт.

13

BN312706

BEARING, ROLLER,40mm ID x 90mm OD x 23mm W

1шт.

14

BN312707

SHAFT

14T 12/24

1шт.

15

87575875

SCREW

6шт.

16

87607504

GASKET

edc

1шт.

17

87487840

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

0.103 X 3.737 154 7

1шт.

18

87495196

SERVICE KIT

1шт.
