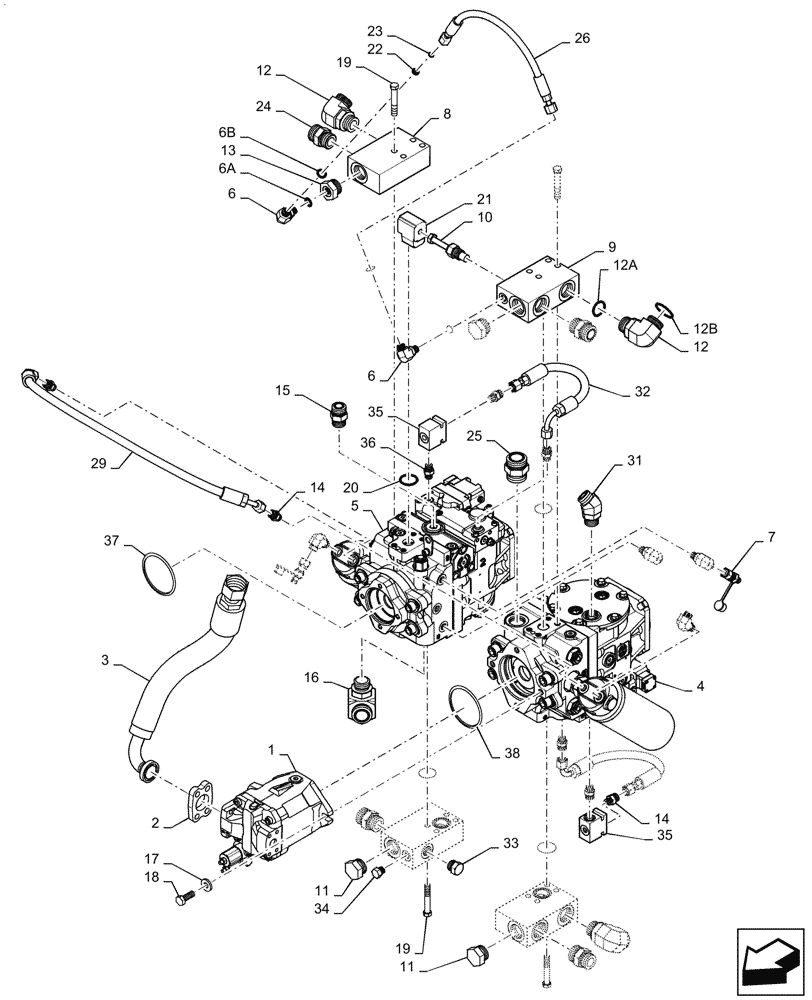

Запчасти Case IH 4420 (06-017) - HYDROSTATIC PUMP GROUP Hydraulic Plumbing

1

BN316492

PUMP,28 CC

PRES COMP. 1.16

1шт.

BN316492R

REMAN-HYD PUMP

4420 (8/06-9/11)

1шт.

BN316492C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1a

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

Used on the nose of hydraulic pump BN316492

1шт.

2

BN316599

REPAIR KIT

1-1/4 SPLITFLGE CO 61

1шт.

Incl 2 Clamps, 70921117, 4 Bolts, 9637916, 4 Lock Washers, 92-11044, 1 O Ring, 235757

1шт.

3

343888A1

HOSE

20 x 20"

1шт.

3

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

4

87544311

PUMP

R.H HYD S90 W/13T EDC

1шт.

See Fig. 06-019

1шт.

87544311R

REMAN-HYD PUMP

4420 (8/06-9/11)

1шт.

87544311C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

87544310

PUMP

L.H HYD S90 W/11T EDC

1шт.

See Fig. 06-018

1шт.

87544310R

REMAN-HYD PUMP

4420 (8/06-9/11)

1шт.

87544310C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

8шт.

6a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

7

BN307993

NIPPLE, LUBE

Diagnostic Nipple-6FFOR

5шт.

8

87544315

MANIFOLD

Block W/O Cavity, Located: Top, on LH Pump, Bottom on RH Pump

2шт.

9

87544316

MANIFOLD

Block W/ Cavity, Located: Bottom, on LH Pump, Top on RH Pump

2шт.

10

BN300304

SOLENOID VALVE

Traction

1шт.

11

BN60479

PLUG

1 5/16-12 O-RING-HEX

3шт.

12

BN302574

ELBOW

1-7/16-12 ORFS x 1-5/16-12 ORB

4шт.

12a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

O-ring boss end

1шт.

12b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

13

87271986

PLUG

SAE -16 REWK 9/16-18

1шт.

14

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

6шт.

15

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

16

BN302576

ELBOW

20MOR-16MBX90

1шт.

17

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

2шт.

18

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

Hex, 1/2"-13 x 1 1/4, G8

2шт.

19

87342892

BOLT

Hex, 7/16"-14 x 2 3/4, G5

16шт.

20

BN52317

O-RING

ARP219 90DURO BUNA

4шт.

21

87267935

COIL

12V, DC

1шт.

22

87265840

ORIFICE

.075 - 6 Disc

1шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

3шт.

24

BN57223

FITTING

16 MOR-16 MB

4шт.

25

BN302659

FITTING

20MOR-16MB

1шт.

26

84208158

HYDRAULIC HOSE,6.35mm ID x 432mm L, SAE 100R16

-4 X 432MM

1шт.

29

87552875

HOSE

ASSY, -6 X 28"

1шт.

31

BN302639

ELBOW

12MOR-12MBX45

1шт.

32

87560255

HOSE

ASSY, -6 X 15

2шт.

33

BN21243

PLUG

Hex, 7/8"-14, O-Ring

1шт.

34

BN446048

PLUG

HEX O-RING -6, 9/16-18

1шт.

35

87544312

VALVE

Shunt Deutsch

2шт.

See Fig. 06-021

1шт.

36

BN313038

FITTING

6MB-6MB

2шт.

37

14461081

O-RING,3.237" ID x 0.103" Width

1шт.

38

87487840

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

0.103 X 3.737 154 7

1шт.

39

BN307971

SEALANT

thread

1шт.

40

BN1243001

LOCTITE

243-31 Removable

1шт.
