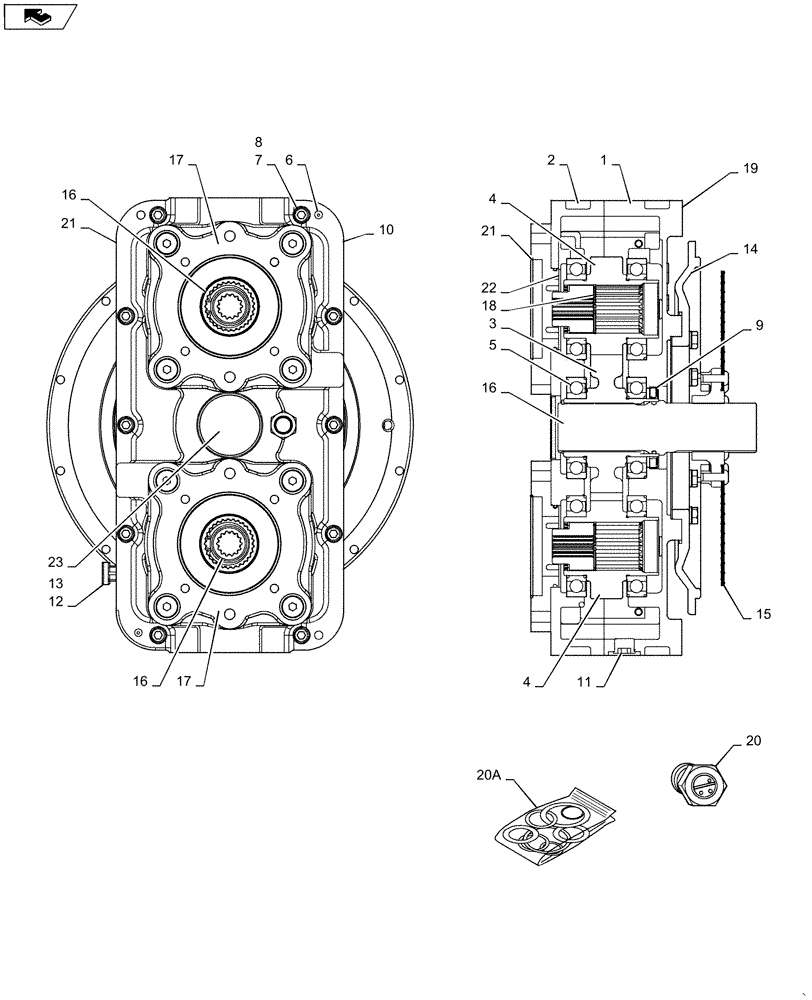

Запчасти Case IH 4420 (06-016) - DRIVE-2 PUMP, 1.40 UP Hydraulic Plumbing

0

87270172

PUMP

1шт.

3

84141288

GEAR

SPUR-6DP-42T

1шт.

4

84141289

GEAR

SPUR-6DP-30T

2шт.

5

84145358

BALL BEARING,75mm ID x 130mm OD x 25mm W

75mm X 130mm X 25mm

6шт.

7

82072

HEX SOC SCREW,1/2" - 13 x 1 1/2"

10шт.

8

87326976

LOCK WASHER

.5 PLN

10шт.

9

84145401

SEAL,74.63mm ID x 104.78mm OD x 9.53mm Thk

2.938 X 4.125 X .375 DBL VITON

1шт.

10

84141296

DRAIN PLUG

ZEROLEAK HEX SOC MAG

1шт.

12

84141297

DRAIN PLUG

ZEROLEAK 1-16UN HD VENT

1шт.

13

84145402

FITTING

BREATHER ASSY

1шт.

14

87272928

ADAPTER

ENGINE DRIVE PUMP

1шт.

15

87565603

PLATE

DRIVE ASSY DURST #X

1шт.

16

87272931

SHAFT

pump

1шт.

103-11250

SNAP RING,#250, Ext

For Ref 16, Not Shown

1шт.

17

87272929

PAD

PUMP

2шт.

18

87272930

SPLINE

PUMP

2шт.

20

84141299

GAUGE

SIGHT

1шт.

20a

87565601

SEAL KIT

1шт.

Associated Part of Pump, Spline, P/N 87272930

1шт.

20b

87565602

GASKET

Shaft Durst #012042

1шт.

Associated Part of Pump, Spline, P/N 87272930

1шт.

21

BN312705

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

Auxiliary Flange

2шт.

Associated Part of Pump, Spline, P/N 87272930

1шт.

22

87564747

O-RING,3.859" ID x 4.137" OD x 0.139"

#241, Class 7

2шт.

Associated Part of Pump, Spline, P/N 87272930

1шт.

23

84368027

EXPANSION PLUG

PLUG, Expansion

1шт.

24

70933480

O-RING,0.139" Thk x 2.359" ID, -229, Cl 7, 75 Duro

Used on Shaft Ref 16, Not Shown

1шт.
