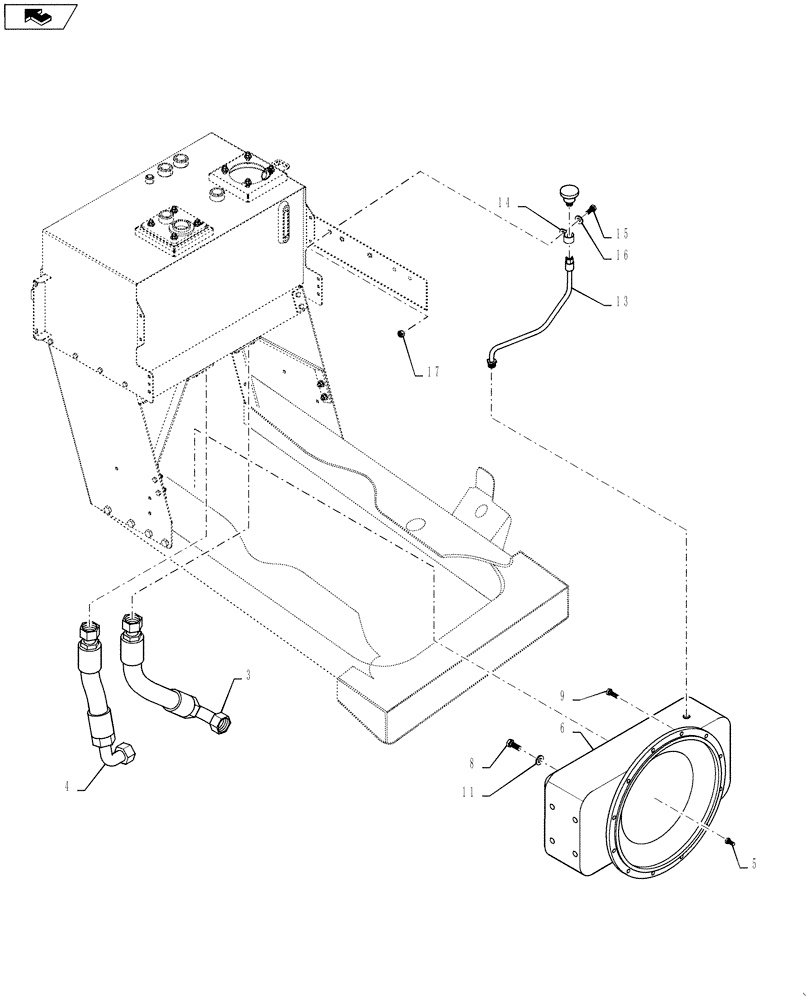

Запчасти Case IH 4420 (06-015) - PUMP DRIVE GROUP Hydraulic Plumbing

3

87545978

HOSE

ASSY, -20 x 29

1шт.

4

343995A1

HOSE ASSY.

20 x 16"

1шт.

5

87342574

BOLT

Hex, 3/8"-16 x 3/4", G8

8шт.

6

87270172

PUMP

drive 2, 1.40 UP SPL

1шт.

See Fig. 06-016

1шт.

7

87272005

SYNTHETIC SHC629

3шт.

8

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

Hex, 1/2"-13 x 1 1/4, G8

8шт.

9

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

11

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

12

BN55089

GREASE

Grease, 14 oz tube

1шт.

13

87592184

HOSE

08 x 30"

1шт.

14

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

15

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

17

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

18

84145402

FITTING

Breather

1шт.
