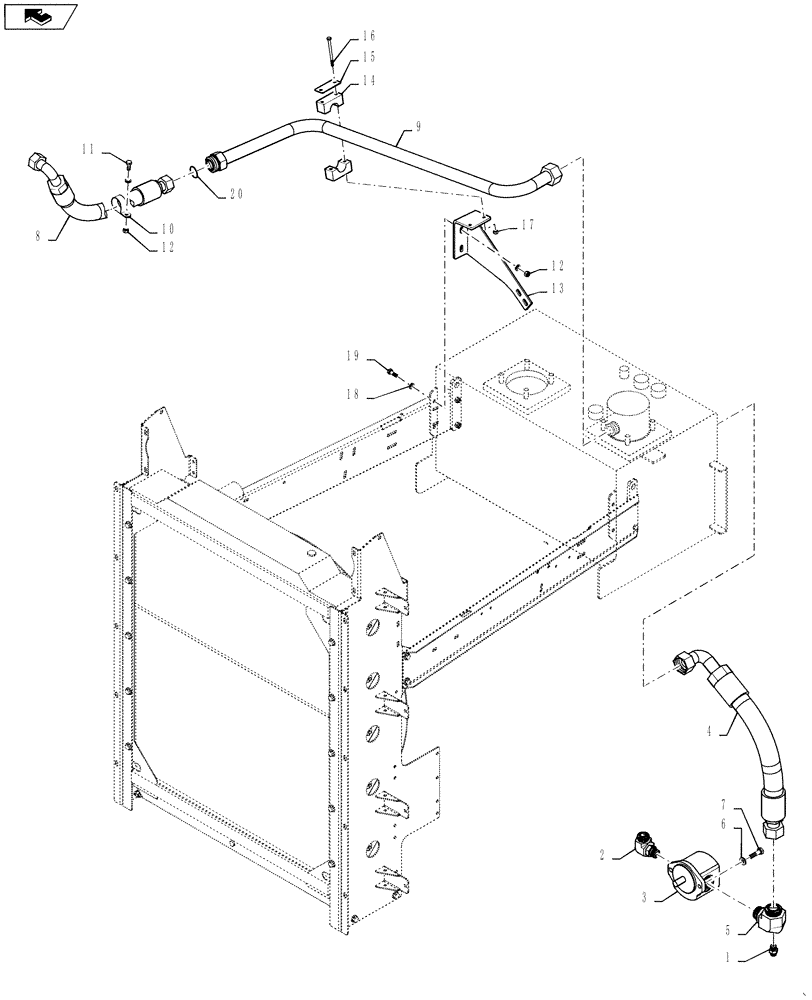

Запчасти Case IH 4420 (06-014) - PUMP GROUP, DED Hydraulic Plumbing

1

BN302583

FITTING

6MOR- 6MOR- 6MBX

1шт.

2

BN53590

ELBOW

12MOR-10MB x 90

1шт.

3

87266244

PUMP,22 CC

Gear, 1.39 Cu. In LH

1шт.

3a

84226692

SERVICE KIT

SEAL, GEAR, PUMP, P/N 87266244

1шт.

4

87385792

HOSE

-20 X 23.5”

1шт.

5

BN313173

ADAPTER

MACHINED

1шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

7

BN50368

BOLT

3/8-16 X 1.25, HH, G8

2шт.

8

87272401

HOSE

ASSY -16 X 46”

1шт.

9

87270165

TUBE,1.25" OD

STEEL LINE RETURN

1шт.

10

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

9991588

NUT,M8 x 1.25, Cl 8

3шт.

13

87272221

BRACKET

STEEL LINE

1шт.

14

BN307082

CLAMP

PAIR 1.25” TUBE

1шт.

15

BN307083

PLATE

TOP, CLAMP-1.25"TUBE

1шт.

16

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

2шт.

17

353308

NUT,M6 x 1.0, Cl 8

2шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

20

BN305415

O-RING

FOR -20 FFOR

1шт.
