(06-013) - OIL COOLER/MANIFOLD GROUP

Запчасти Case IH 4420 (06-013) - OIL COOLER/MANIFOLD GROUP Hydraulic Plumbing

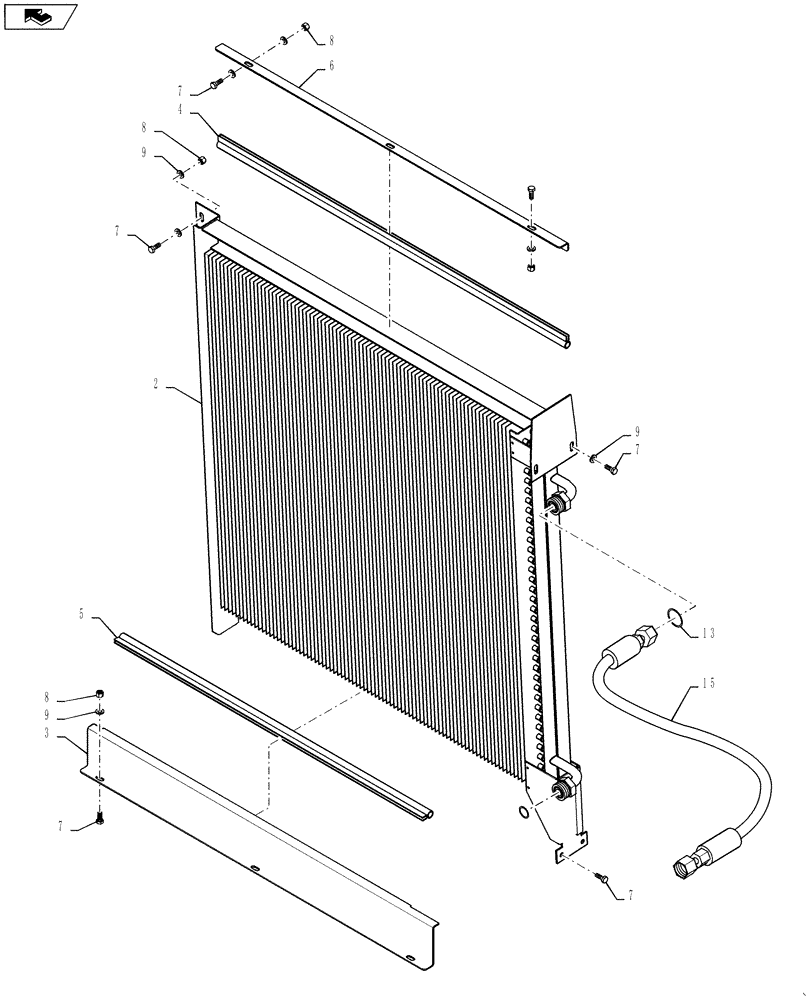

Схема запчастей Case IH 4420 - (06-013) - OIL COOLER/MANIFOLD GROUP Hydraulic Plumbing
home
5
4
8
9
7
7
7
13
7
9
7
8
6
3
15
9
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

87271989

OIL COOLER

1шт.

3

87384506

BRACKET, SUPPORTING

MOUNT, SEAL, LOWER

1шт.

4

BN324183

OIL SEAL

OIL COOLER

1шт.

5

87384504

OIL COOLER

1шт.

6

BN324184

MOUNTING PLATE

SEAL, UPPER

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

8

9991588

NUT,M8 x 1.25, Cl 8

10шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

13

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

.062 X .938IN, CLASS 6

2шт.

15

BN307791

HOSE ASSY.

-16 X 49.5”

1шт.
