Запчасти Case IH 4420 (06-011) - HYDRAULIC GROUP, BOOM OUTER FOLD Hydraulic Plumbing

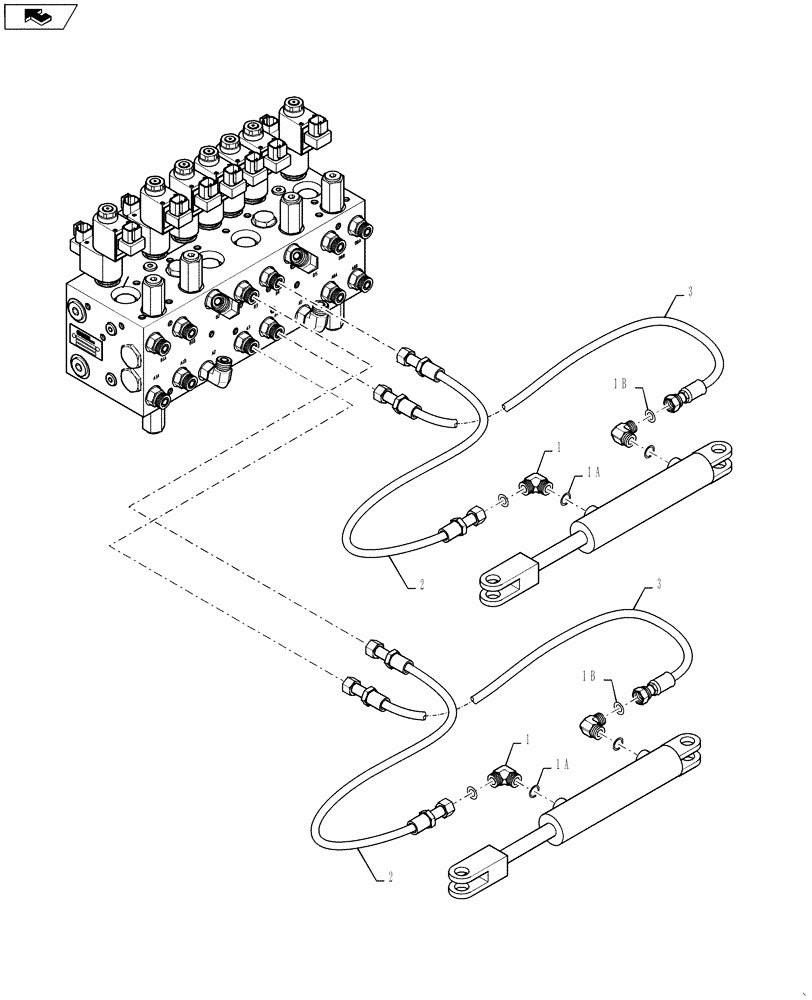

Схема запчастей Case IH 4420 - (06-011) - HYDRAULIC GROUP, BOOM OUTER FOLD Hydraulic Plumbing
3
home
3
2
1a
1b
1
1
1b
1a
2

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

87474625

HYDRAULIC HOSE

-6 X 9931MM, Start Year: 01-JAN-09

2шт.

2

BN307879

HOSE ASSY.,6.35mm ID x 9855.2mm L

, Years: -01-JAN-09

2шт.

3

87474626

HYDRAULIC HOSE,9.53mm ID x 9423mm L, SAE 100R17

-6 X 9423MM, Start Year: 01-JAN-09

2шт.

3

BN307880

HOSE ASSY.,6.35mm ID x 9423.4mm L, SAE 100R17

, Years: -01-JAN-09

2шт.

Выбрано товаров: 7
