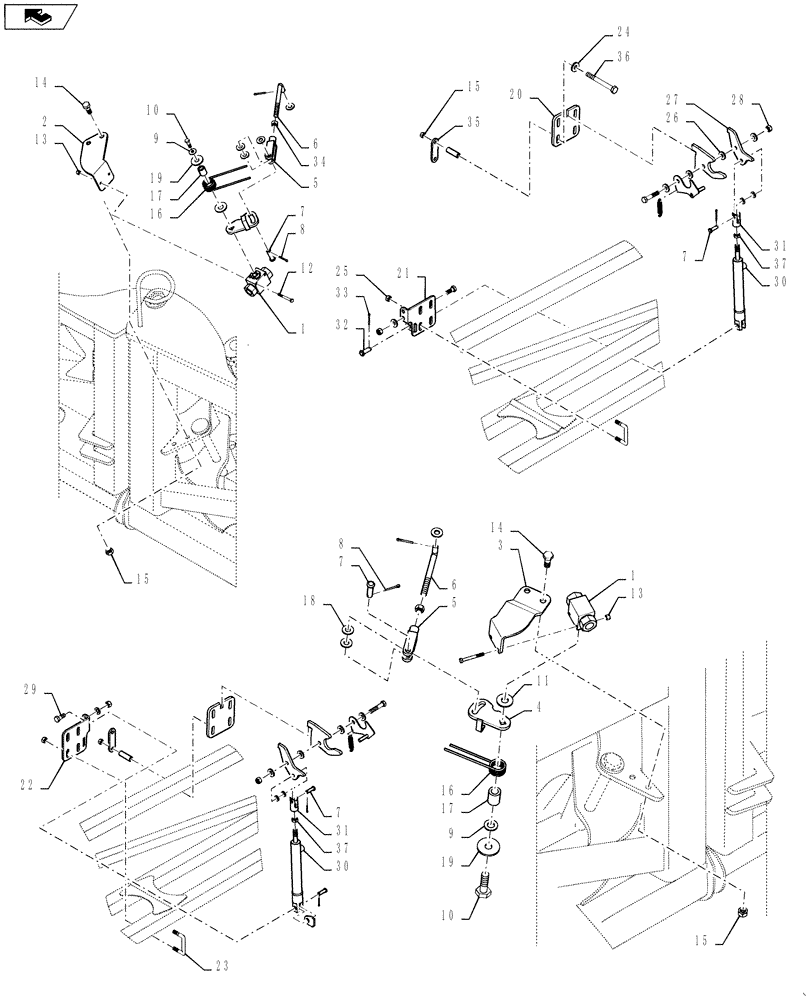

Запчасти Case IH 4420 (06-010[01]) - HYDRAULIC LOCK GROUP, 120’ BOOM, BEFORE 01/2009 Hydraulic Plumbing

1

87599630

VALVE

Ball, 2-Way Manual

2шт.

2

87675563

MOUNTING PARTS

LOCK VALVE, LH

1шт.

3

87675564

MOUNTING PARTS

LOCK VALVE, RH

1шт.

4

87730798

ACTUATOR

VALVE

2шт.

5

86625043

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

6

87735870

SPECIAL BOLT

3/8”-24 UNF

2шт.

7

86624079

HEADED PIN,3/8" x 1 1/4", G2

4шт.

8

733-2520

COTTER PIN,M2.5 x 20

6шт.

9

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

10

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

2шт.

11

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

M12 x 30 x 2.5 DOR

2шт.

12

86508567

BOLT,Hex, M5 x 45mm, Cl 8.8

4шт.

13

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

4шт.

14

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

16

306255A2

SPRING

torsion 3.43 mm wire x 27.99 mm od LH

2шт.

17

87732339

TUBE,9.53 mm ID x 15.88 mm OD x 20 mm L

.625 od x .125 Wall x 20 mm

2шт.

18

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

8шт.

19

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

20

87730683

CATCH

BOOM LOCK

2шт.

21

87730686

ANCHOR

LH

1шт.

22

87730687

ANCHOR

RH

1шт.

23

425254A1

U-BOLT

us 3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread

4шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

25

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

8шт.

26

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

27

87730688

HOOK

BOOM LOCK

2шт.

28

100038

NUT,M12 x 1.75, Cl 8

2шт.

29

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

30

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

2шт.

See Fig. 07-012

1шт.

31

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

2шт.

32

439-1824

HEADED PIN,1/2" x 1 1/2", G2

2шт.

33

733-4020

COTTER PIN,M4 x 20

2шт.

34

87343675

NUT

Hex, 3/8"-24, G5

2шт.

35

BN308039

PLATE

Spacer

4шт.

36

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

8шт.

37

BN50075

NUT

1/2"-20, Stainless Steel

2шт.
