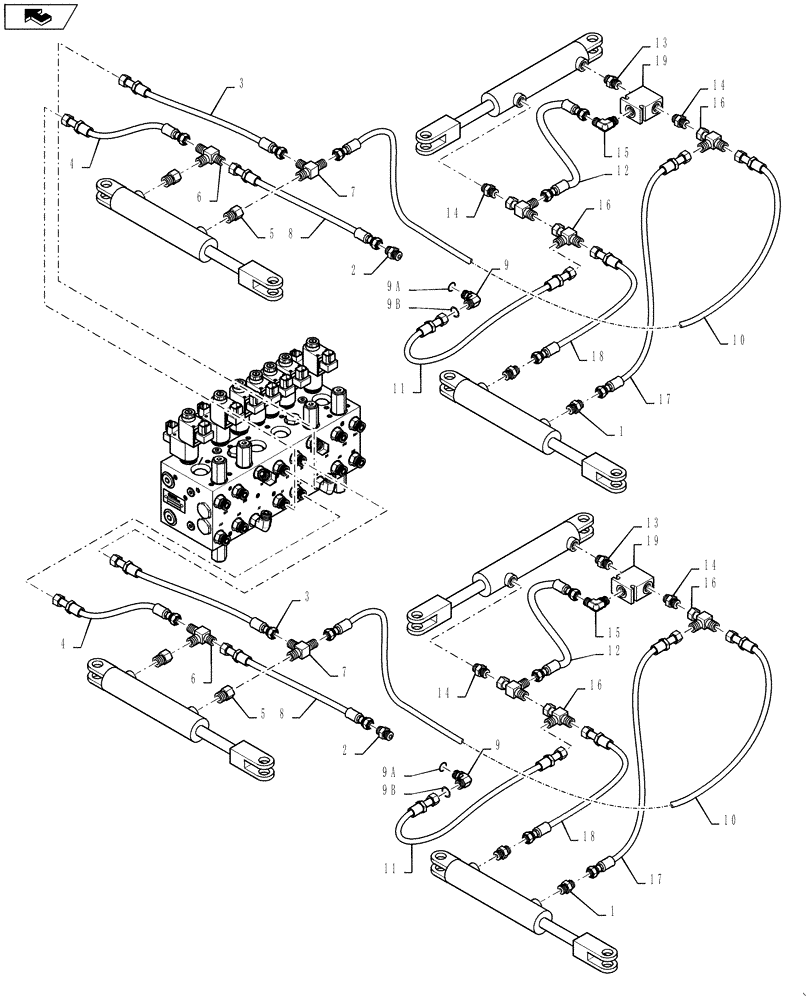

Запчасти Case IH 4420 (06-009) - HYDRAULIC GROUP, OUTER, 120’ BOOM Hydraulic Plumbing

1

BN302647

FITTING

6MOR-8MB

4шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

3

87600247

HOSE

6 x 330"

2шт.

4

87600246

HOSE

6 x 310"

2шт.

5

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

4шт.

6

BN302536

FITTING

6MOR-6MBX-6MOR

2шт.

7

BN302583

FITTING

6MOR-6MOR-6MBX

2шт.

8

BN325308

HOSE ASSY.

-6 X 36"

2шт.

9

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

9a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

9b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

10

87734443

HOSE

ASSY, -6 X 4826MM

2шт.

11

87734444

HOSE

ASSY, -6 X 5004MM

2шт.

12

87734445

HOSE

ASSY, -6 X 305MM

2шт.

13

BN310595

FITTING

4MB-4MB

2шт.

14

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

4шт.

15

BN302548

FITTING

4MOR-4MB

2шт.

16

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

6шт.

17

BN316764

HOSE

ASSY, -6 X 48"

2шт.

18

87734446

HOSE

ASSY, -6 X 737MM

2шт.

19

87733800

CHECK VALVE

PO, 5 gpm

2шт.

See Fig. 06-044

1шт.
