Запчасти Case IH 4420 (06-007) - HYDRAULIC GROUP, 60’ STANDARD BOOM Hydraulic Plumbing

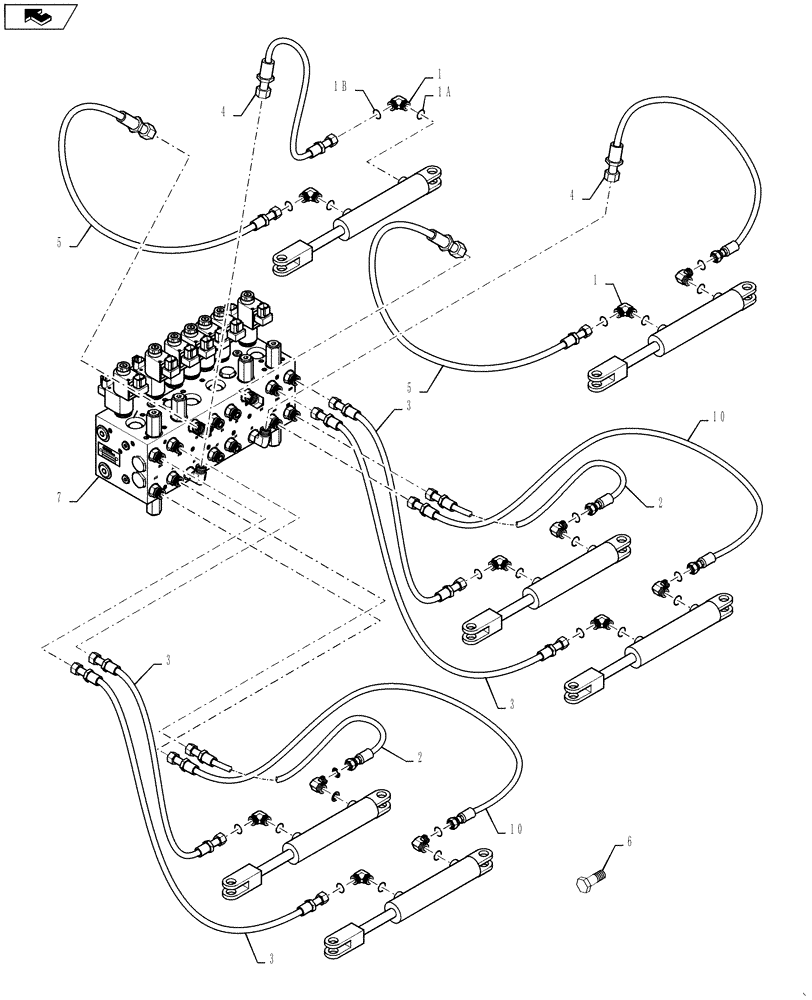

Схема запчастей Case IH 4420 - (06-007) - HYDRAULIC GROUP, 60’ STANDARD BOOM Hydraulic Plumbing
2
1b
4
10
3
1
home
6
3
4
10
1a
2
1
3
3
7
5
5

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

12шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

342591A1

HOSE ASSY.

6 x 40"

2шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

-6 X 64"

4шт.

4

BN324327

HOSE ASSY.

-6 X 64"

2шт.

5

BN324328

HOSE ASSY.

-6 X 90"

2шт.

6

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

7

87746154

CONTROL VALVE

6-BANK W/FTGS, Start Year: 01-JAN-09

1шт.

See Fig. 06-036-01

1шт.

7

87270169

HYDRAULIC VALVE

6-Bank, With Fittings, Years: -01-JAN-09

1шт.

See Fig. 06-036-02

1шт.

10

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

-6 x 1066 MM

2шт.

Выбрано товаров: 13
