Запчасти Case IH 4420 (06-003) - HYDRAULIC GROUP, 2WS Hydraulic Plumbing

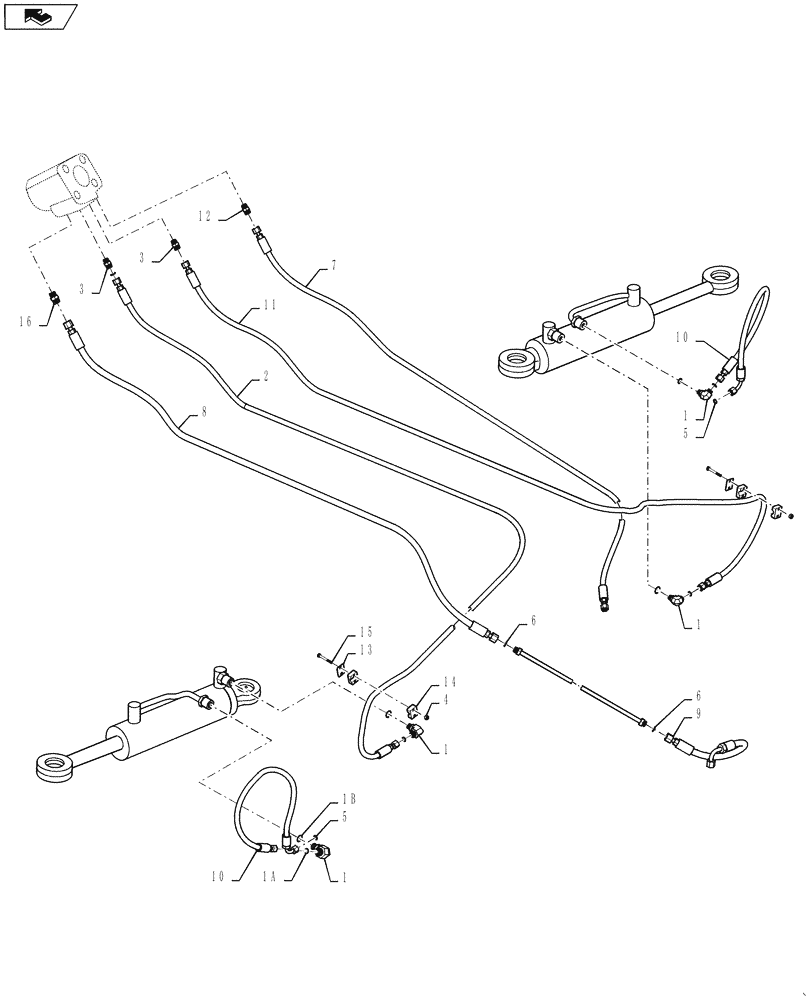

Схема запчастей Case IH 4420 - (06-003) - HYDRAULIC GROUP, 2WS Hydraulic Plumbing
13
8
1
10
9
16
15
1b
10
2
1
1a
1
4
5
5
12
6
11
6
1
3
home
7
14
3

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

87267163

HOSE

6 x 140"

1шт.

3

BN302647

FITTING

6MOR-8MB

2шт.

4

353308

NUT,M6 x 1.0, Cl 8

4шт.

5

BN305412

O-RING

FOR -6 FFOR

2шт.

6

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR -8 FFOR

2шт.

7

BN321024

HOSE ASSY.

-6 X 92"

1шт.

8

BN321023

HOSE ASSY.

-8 X 88"

1шт.

9

BN307840

HOSE ASSY.

13/16 -16 Female ORFS Swivel Short Elbow x 13/16 -16 Female ORFS Swivel x 1/2" ID x 20" Long, Steel Line to Return Manifold

1шт.

10

BN307821

HOSE ASSY.

2шт.

11

84226498

HOSE

6 x 3073MM

1шт.

12

BN311751

CHECK VALVE

11/16" -16 OFRS x 3/4" -16 ORB

1шт.

13

BN29785

PLATE

Cover, Single, 1/2" Tube

2шт.

14

BN315164

CLAMP

PAIR, SNGL, 5/8 TUBE

2шт.

15

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

16

BN302650

FITTING

8 MOR-8 MB

1шт.

Выбрано товаров: 18
