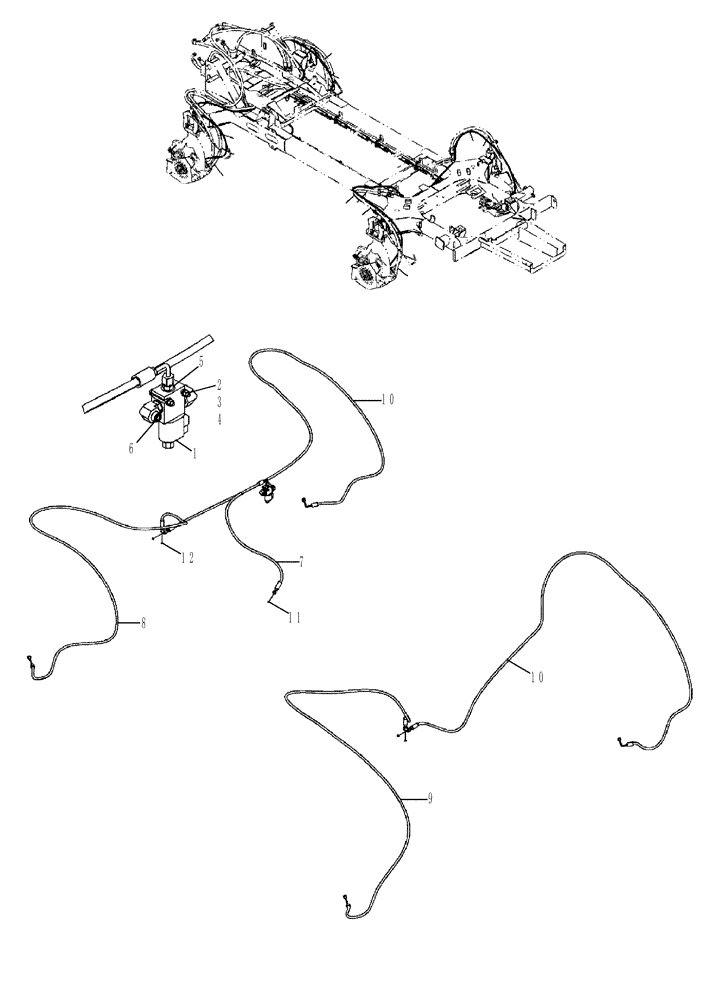

Запчасти Case IH 4420 (06-001) - DRIVE CONTROL HYDRAULIC GROUP Hydraulic Plumbing

1

87272002

HYDRAULIC VALVE

Motor Control

1шт.

See Fig. 06-041

1шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

3

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

5

BN302641

FITTING

4MOR-6MB

1шт.

6

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

6a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

7

87268131

HOSE

4 x 47"

1шт.

8

BN325849

HOSE ASSY.

-4 X 149"

1шт.

9

86986088

HOSE

4 x 141"

1шт.

10

BN325850

HOSE

- 4 x 169"

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

1шт.

12

BN305412

O-RING

FOR -6 FFOR

4шт.
