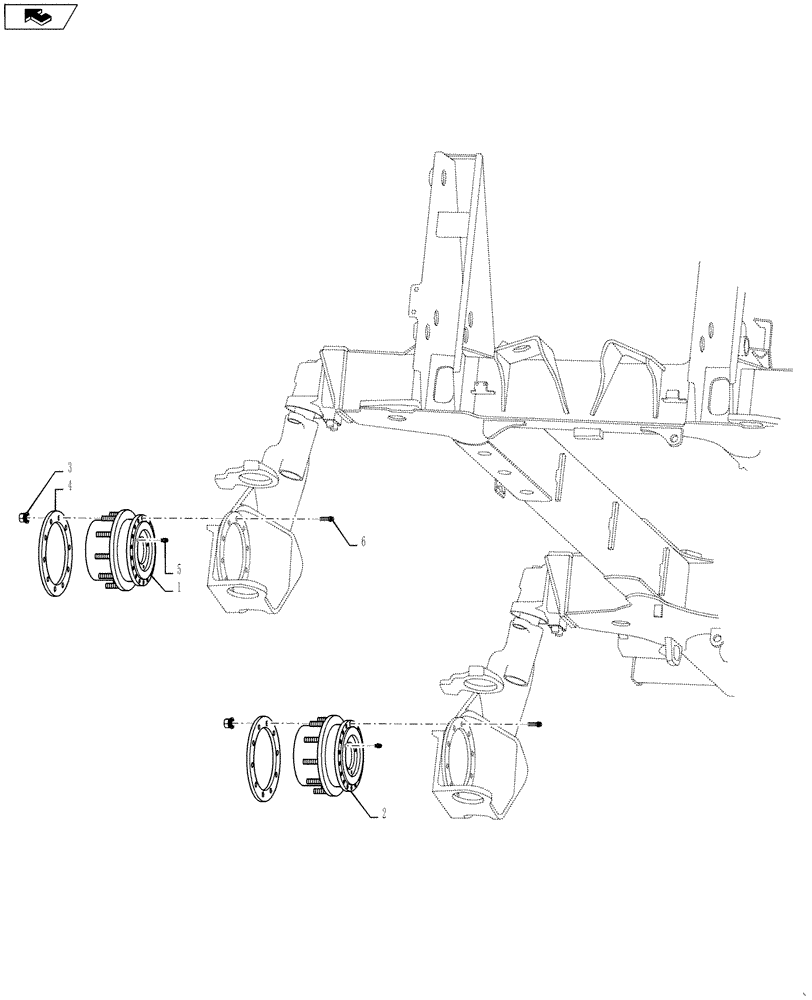

Запчасти Case IH 4420 (05-001) - GEAR RATIO GROUP Hub, Wheel & Tires

1

87757893

HUB

Planetetary 28:1, With Lip Seal, Serial Range: -Y9T026247

2шт.

See Fig. 05-003

1шт.

84163263R

REMAN-WHEEL END ASSY

4420 Serial Range: -Y9T026247 (8/06-9/11), Reman for new PN/ 87757893

2шт.

84163263C

HUB

Return Number

1шт.

1

84163263

CARRIER,Assembly, Rear Planetary Gearbox

Planetary 28:1, With Lip Seal Lobed Brake, Start Serial: Y9T026248

2шт.

See Fig. 05-003

1шт.

84163263R

REMAN-WHEEL END ASSY

4420 Start Serial: Y9T026248 (8/06-9/11)

2шт.

84163263C

HUB

Return Number

1шт.

2

87757892

HUB

Planetary 21:1 With Lip Seal, Serial Range: -Y9T026247

2шт.

See Fig. 05-002

1шт.

2

84163261

HUB,Planetary

Planetary 21:1 With Lip Seal Lobed Brake, Start Serial: Y9T026248

2шт.

See Fig. 05-002

1шт.

3

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.

4

BN306152

SPACER

WHEEL HUB

2шт.

5

BN305432

ADAPTER

9/16-18 x M12x1.5, Park Brake Fitting

4шт.

6

BN304226

BOLT

M16-2X45,FH,10.9

72шт.

7

87027134

FLUID

Oil, SAE 85W140, MS1616NH 1QT

1шт.
