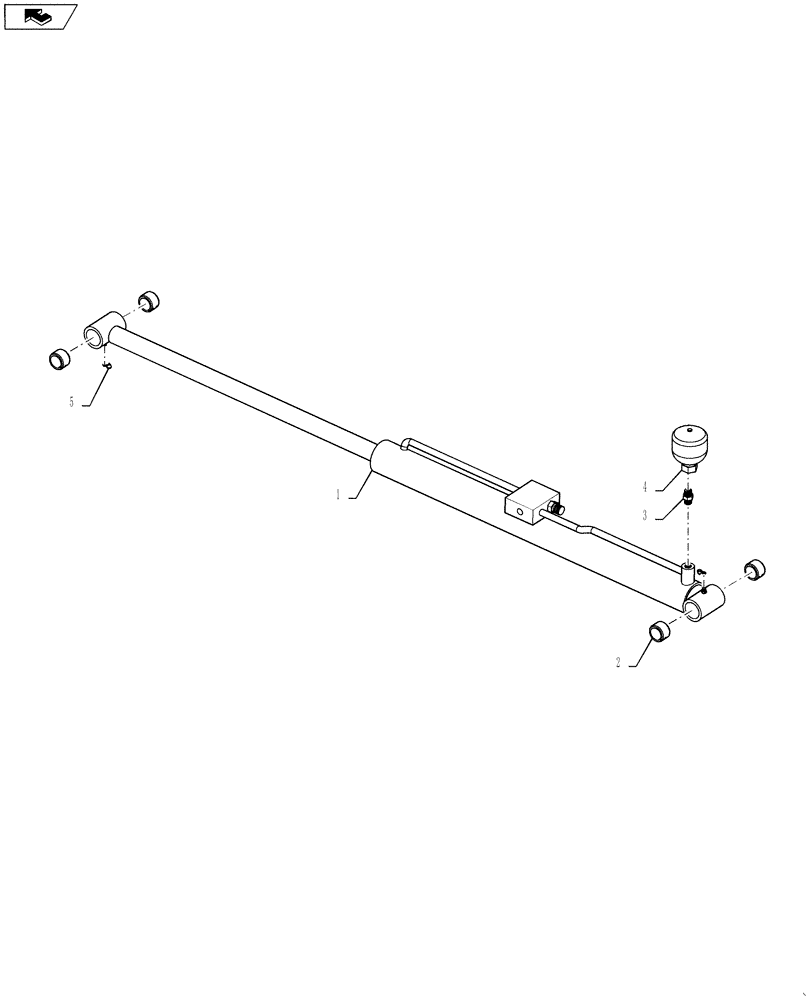

Запчасти Case IH 4420 (07-014) - CYLINDER GROUP, PARALLEL LINKS Cylinders

0

87267881

CYLINDER

Group, Para-Links, Ref Figure 04-001(01), Order Components

1шт.

1

87266459

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 819.91mm Stroke

Hydraulic, 2.5 x 32.28 x 1.5

1шт.

See Fig. 07-015

1шт.

2

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

SPRING

4шт.

3

BN313038

FITTING

6MB-6MB

1шт.

4

87267325

ACCUMULATOR

10 cu. 825 psi

1шт.

5

BN69951

CAP

Grease

2шт.

0

84226615

CYLINDER Group, Para-Links, Ref Figure 04-001(02), Order Components

1шт.

1

84156129

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 819.91mm Stroke

2.5 x 32.28 x 1.75

1шт.

See Fig. 07-015

1шт.

2

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

SPRING

4шт.

3

BN313038

FITTING

6MB-6MB

1шт.

4

87267325

ACCUMULATOR

10 cu. 825 psi

1шт.

5

BN69951

CAP

Grease

2шт.

0

87268686

CYLINDER, Group, Para-links, Ref Figure 04-001(03), Order Components

1шт.

1

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

Hydraulic, 2.5 X 28.5 X 1.5

1шт.

See Fig. 07-015

1шт.

2

87271483

BUSHING

SPRING

4шт.

3

BN313038

FITTING

6MB-6MB

2шт.

4

87267325

ACCUMULATOR

10 cu. 825 psi

1шт.

5

BN69951

CAP

Grease

2шт.
