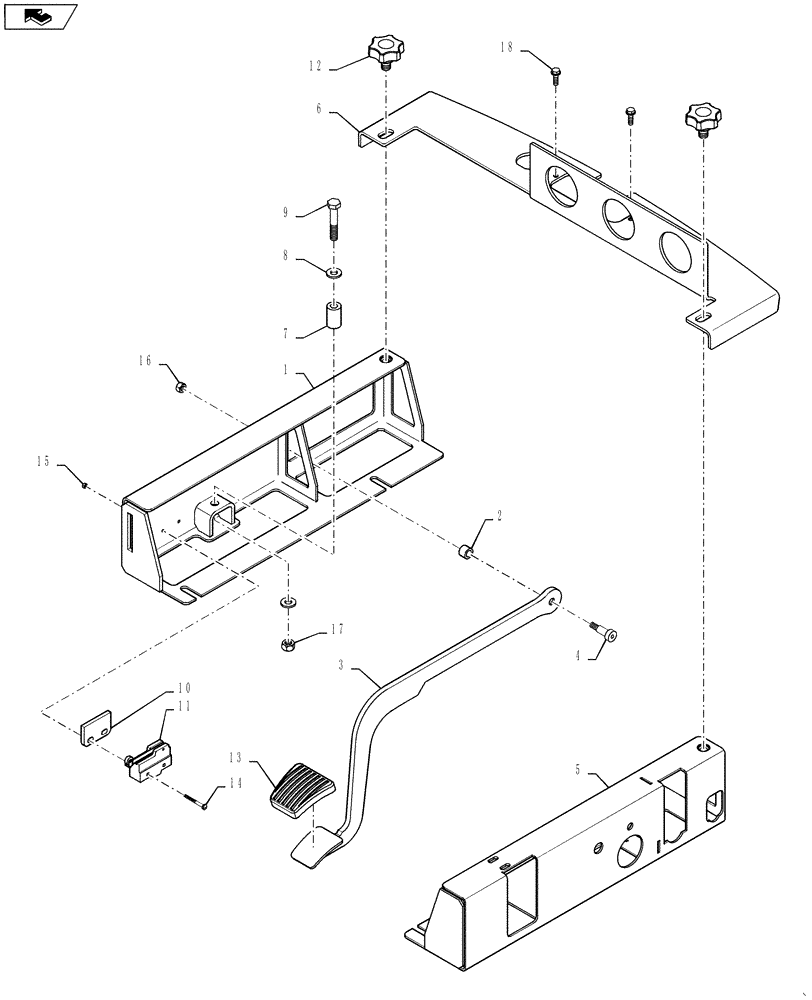

Запчасти Case IH 4420 (01-052) - TRACTION CONTROL GROUP Cab Interior

1

342840A1

FRAME

seat cowling, RH

1шт.

2

BN324429

SPACER

TUBE

1шт.

3

BN324433

LEVER

WLD, TRAC CNTRL

1шт.

4

BN324431

BOLT

M6-1, SHLDR BLT, 8 X 16

1шт.

5

87269340

FRAME

Seat Cowl, LH, SPX

1шт.

6

87271609

SUPPORT

WIRE HARNESS

1шт.

7

BN324420

SPRING

DIE 5/8 X 11/32 X 1.00

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

86980384

BOLT,Hex, M8 x 45mm, Cl 8.8

HD, M8 X 4.5, CL8.8 DOR

1шт.

10

87269472

SPACER

SWITCH

1шт.

11

BN324434

HARNESS

GRP, TRAC CNTRL

1шт.

12

394133A1

KNOB

BATTERY COVER

2шт.

13

323657A1

PAD

FOOT RELEASE PEDAL

1шт.

14

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

2шт.

15

824-1403

NUT,M3, Cl 5

2шт.

16

353308

NUT,M6 x 1.0, Cl 8

1шт.

17

9991588

NUT,M8 x 1.25, Cl 8

1шт.

18

84144660

SELF-TAP SCREW

#10-16 x 3/4 BSD/2 HWHD SST

1шт.
