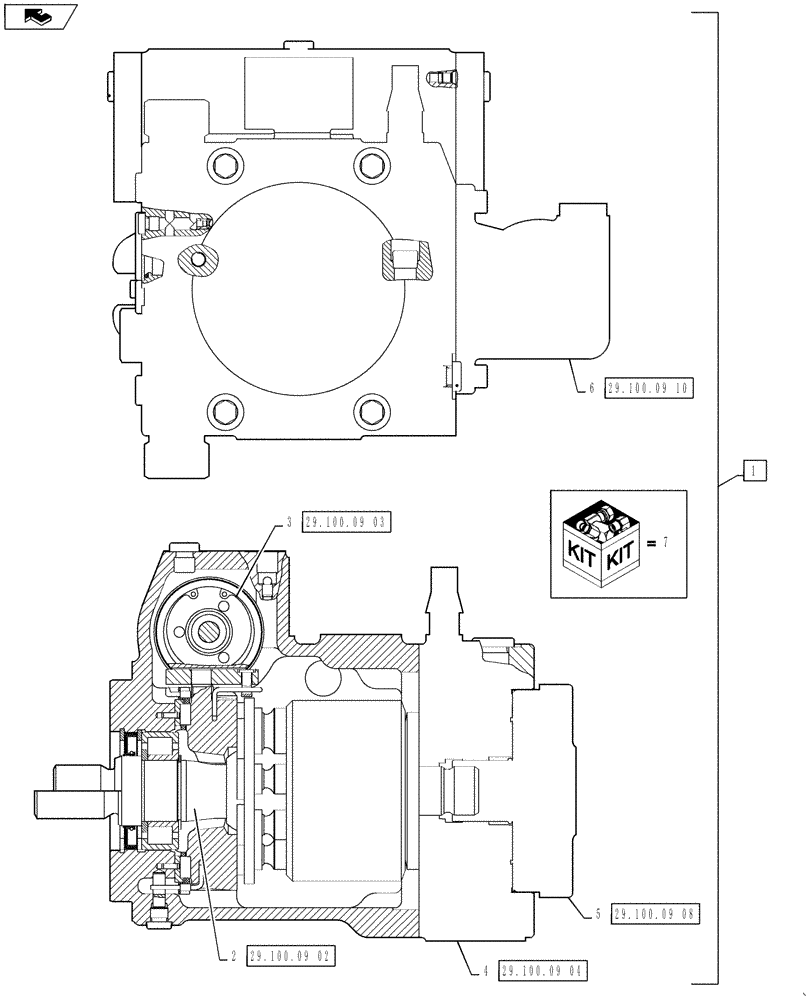

Запчасти Case IH 3330 (29.100.09[01]) - HYDROSTATIC PUMP, WITH 13 TEETH, RH MOUNTED, BSN YCT032640 (29) - HYDROSTATIC DRIVE

1

87269803

PUMP

Complete Pump, 13 Tooth, Includes Ref 2 - 7

1шт.

1

87269803R

REMAN-HYD PUMP

Complete Pump, 13 Tooth

1шт.

1

87269803C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87601537

KIT

Rotary Group, Hydrostatic Pump, LH Rotation

1шт.

See Fig 29.100.09(02) For Service Parts

1шт.

3

87601538

CONTROL

Hydraulic

1шт.

See Fig 29.100.09(03) For Service Parts

1шт.

4

87601539

MOUNTING PLATE

Port, With Valves

1шт.

See Fig 29.100.09(04) For Service Parts

1шт.

5

87601540

GEAR

Internal Gear Pump Assembly

1шт.

See Fig 29.100.09(08) For Service Parts

1шт.

6

87601541

FILTER

Charge Pump

1шт.

See Fig 29.100.09(10) For Service Parts

1шт.

7

87601542

SEAL KIT

Complete

1шт.
