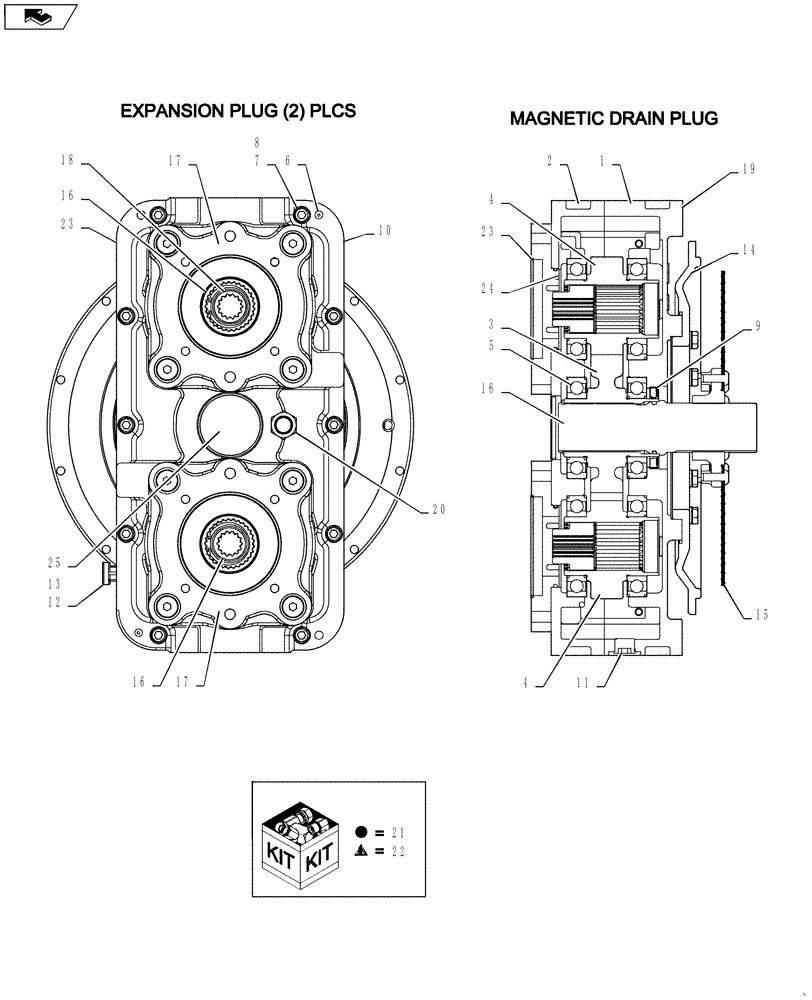

Запчасти Case IH 3330 (29.100.07) - DRIVE-2 PUMP, 1.40 UP (29) - HYDROSTATIC DRIVE

1

87270172

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

84141288

GEAR

SPUR-6DP-42T

1шт.

4

84141289

GEAR

SPUR-6DP-30T

2шт.

5

84145358

BALL BEARING,75mm ID x 130mm OD x 25mm W

75mm X 130mm X 25mm

6шт.

6

NSS

NOT SOLD SEPARAT

3/8" Dowel Pin

2шт.

7

82072

HEX SOC SCREW,1/2" - 13 x 1 1/2"

10шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

9

84145401

SEAL,74.63mm ID x 104.78mm OD x 9.53mm Thk

2.938 X 4.125 X .375 DBL VITON

1шт.

10

84141296

DRAIN PLUG

ZEROLEAK HEX SOC MAG

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, ZeroLeak 1-1/16"-12 Soc Hd

1шт.

12

84141297

DRAIN PLUG

ZEROLEAK 1-16UN HD VENT

1шт.

13

84145402

FITTING

BREATHER ASSY

1шт.

14

87272928

ADAPTER

ENGINE DRIVE PUMP

1шт.

15

87565603

PLATE

DRIVE ASSY DURST #X

1шт.

16

87272931

SHAFT

pump

1шт.

103-11250

SNAP RING,#250, Ext

For Ref 16, Not Shown

1шт.

17

87272929

PAD

PUMP

2шт.

18

87272930

SPLINE

PUMP

2шт.

19

NSS

NOT SOLD SEPARAT

Name Tag

1шт.

20

84141299

GAUGE

SIGHT

1шт.

21

87565601

SEAL KIT

1шт.

22

87565602

GASKET

Shaft Durst #012042

1шт.

23

NSS

NOT SOLD SEPARAT

3/8" Exp Plug

2шт.

24

70933480

O-RING,0.139" Thk x 2.359" ID, -229, Cl 7, 75 Duro

Used on Shaft Ref 16, Not Shown

1шт.

25

84368027

EXPANSION PLUG

PLUG, Expansion

1шт.
