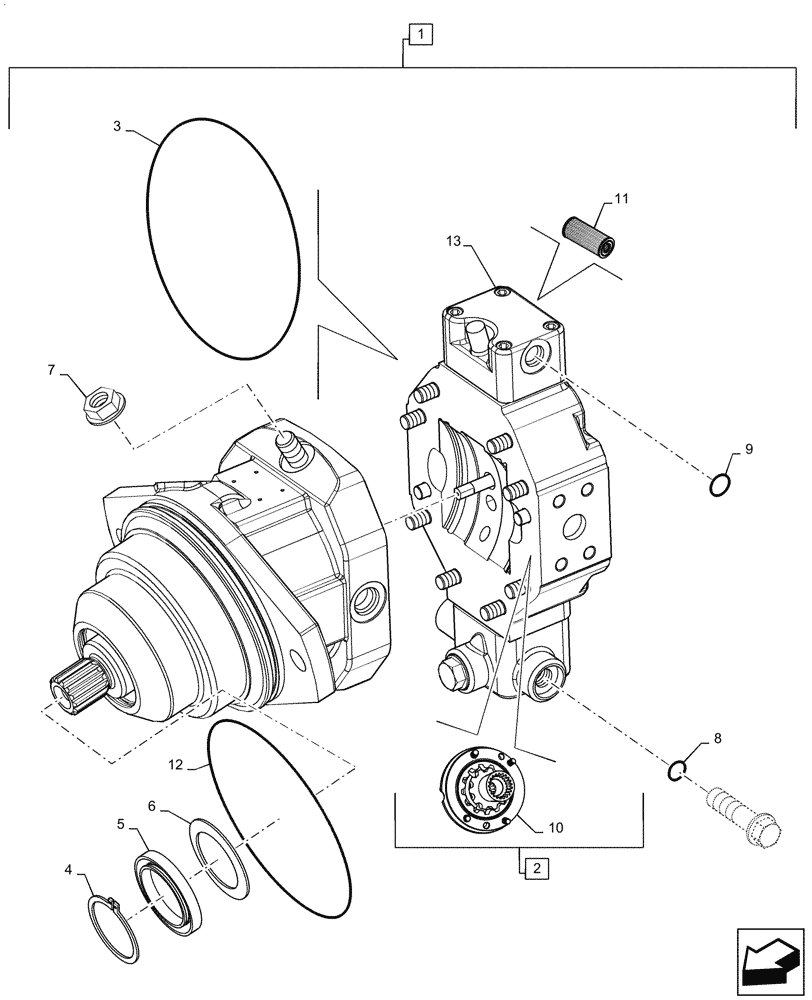

Запчасти Case IH 3330 (29.100.05[04]) - WHEEL MOTOR BREAKDOWN, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84476649

HYDRAULIC MOTOR,55CC

Wheel, 55cc, Includes Ref 2 - 11

1шт.

84476649R

REMAN-HYD MOTOR

Reman Wheel, 55cc, Includes Ref 2 - 11

1шт.

84476649C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

87603547

CONTROL

Wheel Motor, Includes Ref 10- 11

1шт.

3

87603553

O-RING

Wheel Motor Control Seal

1шт.

4

87603550

RING

Retaining

1шт.

5

87603551

SEAL

Shaft

1шт.

6

87603552

PLATE

Back UP

1шт.

7

47547962

NUT

2шт.

8

47547937

O-RING

1шт.

9

47547954

O-RING

1шт.

10

87603555

GEAR SET

Control, Included in Ref 2, Not Shown

1шт.

11

87603556

CARTRIDGE

Flush And Boost Pressure, 20 Micron, Included in Ref 2, Not Shown

1шт.

12

87603554

O-RING,4mm Thk x 150mm ID, 75 Duro

Wheel Motor to Planetary

1шт.

13

48083253

CONTROL VALVE

Displacement Control Block

1шт.
