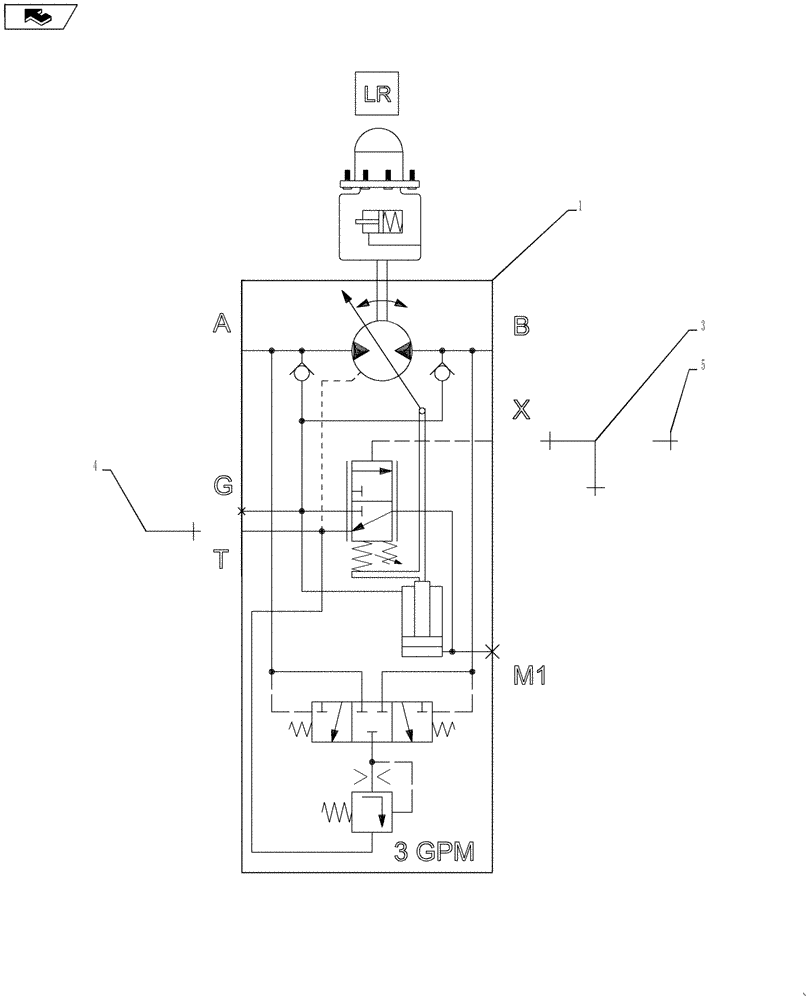

Запчасти Case IH 3330 (29.100.05[03]) - WHEEL MOTOR GROUP, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84476649

HYDRAULIC MOTOR,55CC

Wheel, 55cc

4шт.

See Fig 29.100.05(04) For Service Parts Breakdown

1шт.

84476649R

REMAN-HYD MOTOR

Reman Wheel, 55cc

4шт.

84476649C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

868-16040

12 PT SCREW,M16 x 40mm, Cl 12.9

M16 2 X 40 12PT 12.9

8шт.

Not Shown

1шт.

3

87584271

ADAPTER

REWORKED 90, 6 MOR

4шт.

4

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

4шт.

5

87595456

PLUG

ORB, SOC HD 5/16-24

4шт.
