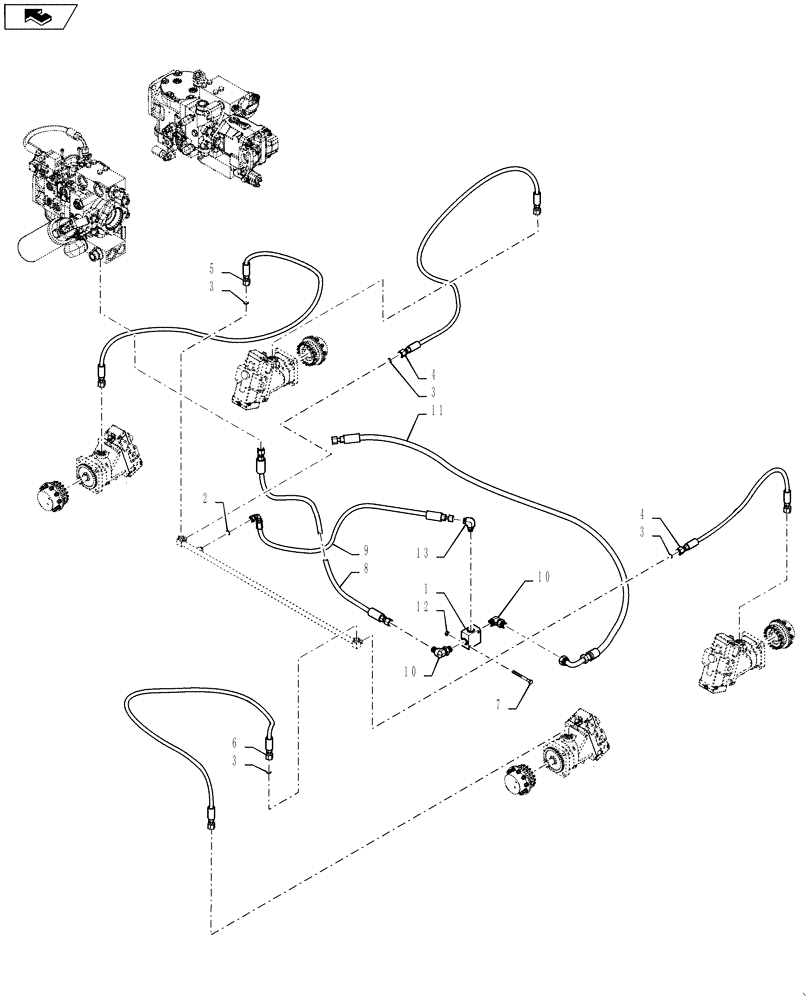

Запчасти Case IH 3330 (29.100.04) - DRIVE CONTROL HYDRAULIC GROUP (29) - HYDROSTATIC DRIVE

1

87269798

HYDRAULIC VALVE

MANIFOLD SHIFT

1шт.

2

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR 4 FFOR

1шт.

3

BN305412

O-RING

FOR 6 FFOR

4шт.

4

87574767

HOSE

6 X 178

2шт.

5

87271558

HOSE

6 X 146

1шт.

6

87574766

HOSE

142

1шт.

7

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

2шт.

8

87720272

HOSE ASSY.

-6 X 1930 MM

1шт.

9

BN316442

HOSE ASSY.

4 X 76"

1шт.

10

BN324682

FITTING

6 FOR 6MB X 90

2шт.

11

87269785

HOSE ASSY.

6 x 82"

1шт.

12

9991588

NUT,M8 x 1.25, Cl 8

2шт.

13

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

1шт.
