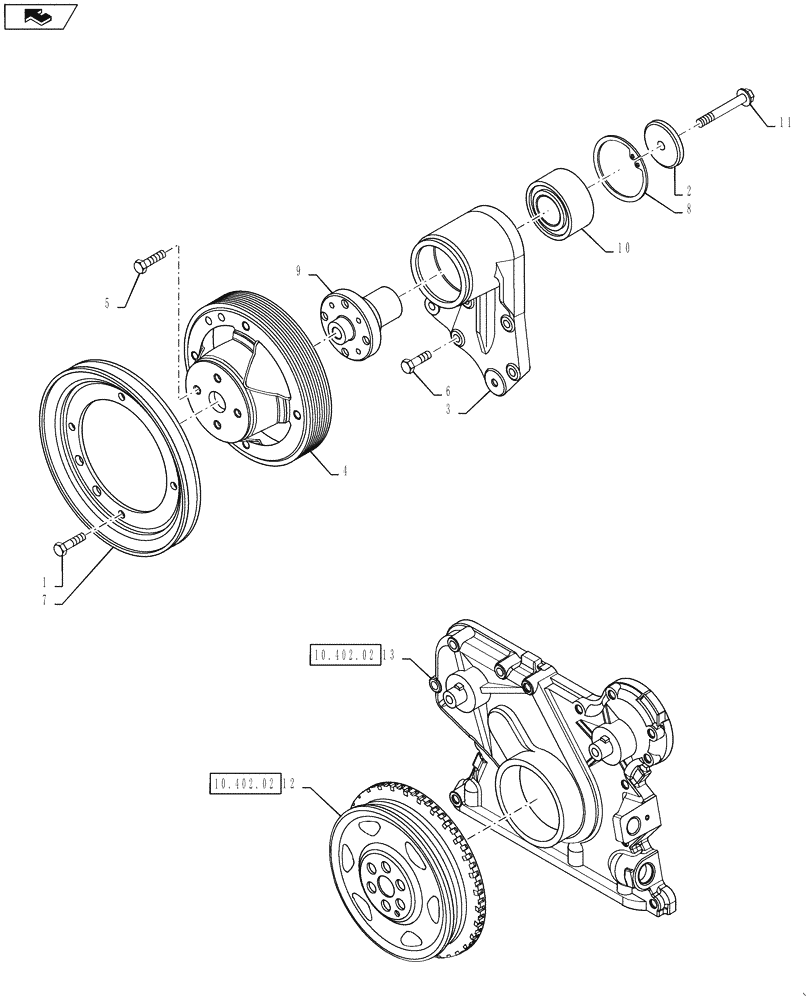

Запчасти Case IH 3330 (10.414.01) - FAN DRIVE (10) - ENGINE

1

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

4шт.

2

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

SPACER

1шт.

3

2852250

SUPPORT

1шт.

4

2853233

PULLEY,178mm OD

1шт.

5

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

6

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

7

2853871

PULLEY

COMPRESSOR

1шт.

8

2852171

SNAP RING

1шт.

9

4892426

HUB

1шт.

10

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

11

2852172

BOLT,Flng, M10 x 1.5 x 70mm

M10 X 70

1шт.

12

4896773

PULLEY

Crankshaft

1шт.

13

4897026

COVER

Front Gear

1шт.
