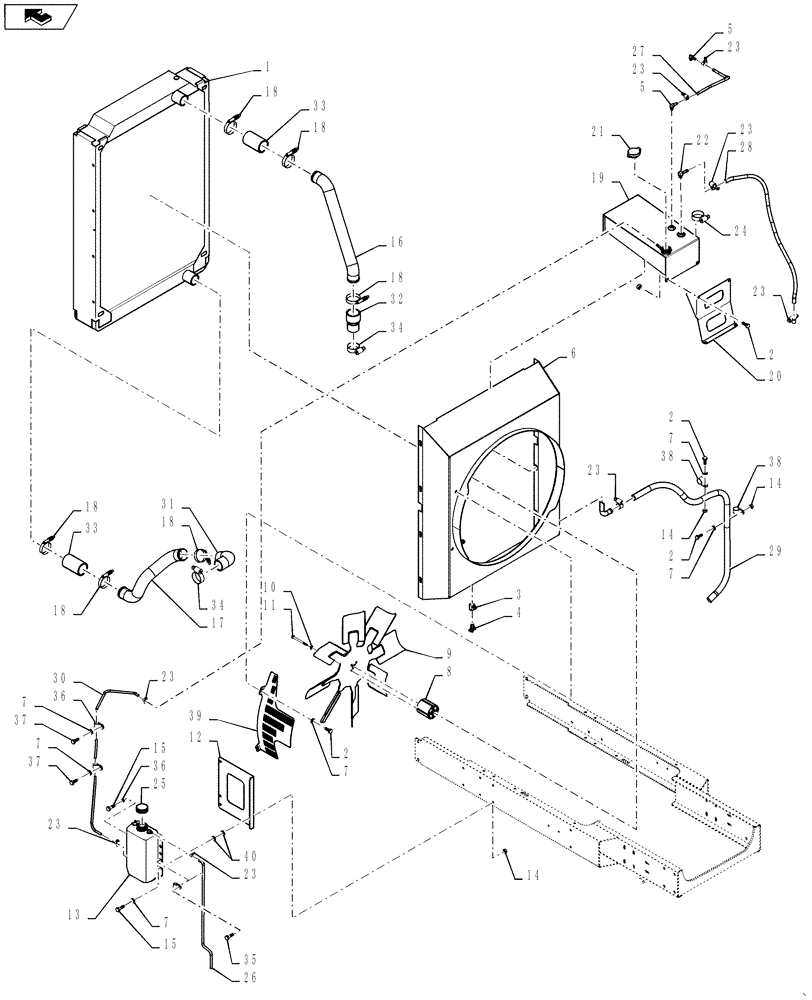

Запчасти Case IH 3330 (10.406.01) - RADIATOR GROUP (10) - ENGINE

1

321959A1

RADIATOR

ENGINE

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

26шт.

3

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

1шт.

4

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

5

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

2шт.

6

87267775

SHROUD

Fan

1шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

14шт.

8

A184524

SPACER

Fan, 80 mm

1шт.

9

87270663

FAN

28" POLY

1шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

11

86980411

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

4шт.

12

87574511

BRACKET, SUPPORTING

COOLANT BOTTLE

1шт.

13

87481454

BOTTLE

Tank, Coolant Recovery, 5 qt

1шт.

14

9991588

NUT,M8 x 1.25, Cl 8

8шт.

15

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

16

87270788

PIPE

UPPER RADIATOR

1шт.

17

87579957

TUBE,2.25" OD

RADIATOR, LOWER

1шт.

18

L115548

CLAMP,57.15mm - 79.38mm

2.5" CONSTANT TORQ

6шт.

19

87268122

TANK

De-Air

1шт.

20

87754737

MOUNT

DE-AIR TANK

1шт.

21

A170241

RADIATOR CAP

15 psi

1шт.

22

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

23

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

7шт.

24

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

25

86507190

CAP

Coolant Recovery Bottle

1шт.

26

BN314262

HOSE,0.31" ID x 36.00"

Rubber

1шт.

27

87267255

HOSE,0.31" ID x 20.00"

1шт.

28

87267962

FUEL HOSE

3/8" X 42"

1шт.

29

342656A1

HOSE

3/4" X 51"

1шт.

30

BN319780

RAD TO RECOVERY

1шт.

Order BN306821 and cut to length

1шт.

31

87270787

RADIATOR HOSE,49.00 mm ID, 57.00 mm ID x 100.00 mm, SAE J20, SAE 20R4 CLASS D1

Lower Engine

1шт.

32

87270786

HOSE,45.0 mm ID, 57.0 mm ID x 100 mm

Rad Coupler, Reducer

1шт.

33

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Radiator Coupling

2шт.

34

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

2шт.

35

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

M8-1.25 X 35

2шт.

36

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

37

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

38

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

39

87746967

GUARD

FAN BELT

1шт.

40

87268056

SPACER

Nylon 18 x 8.3 x 3 mm

8шт.
