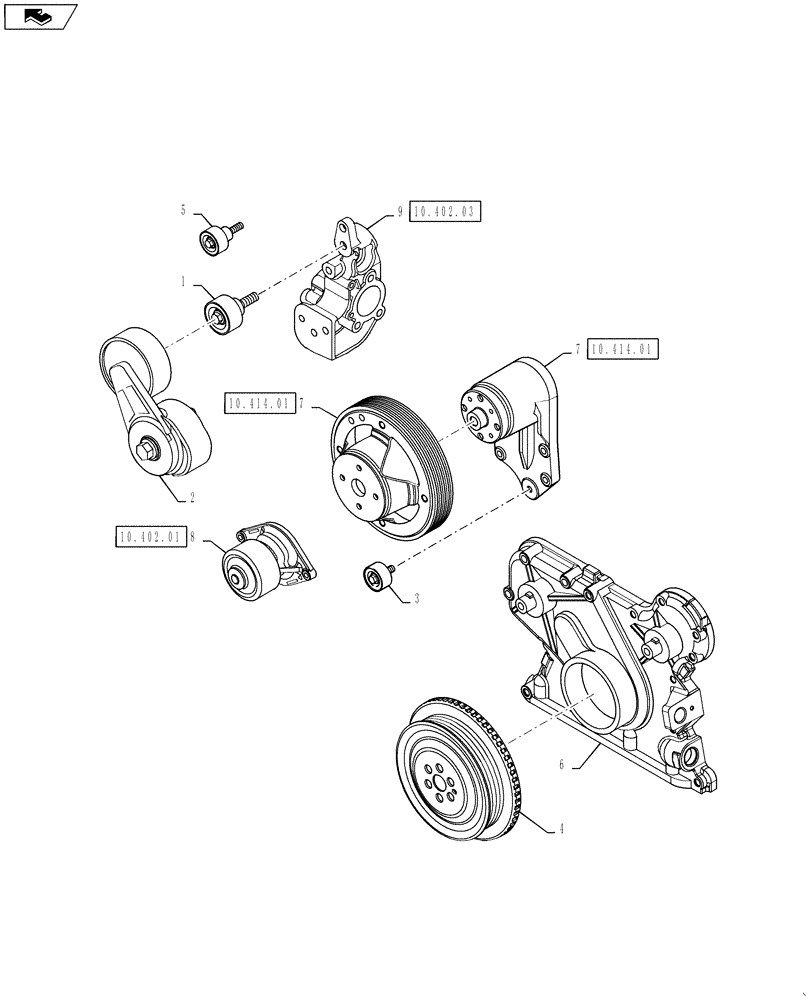

Запчасти Case IH 3330 (10.402.02) - WATER PUMP - CONTROL (10) - ENGINE

1

2852398

IDLER WHEEL,65mm OD

Pulley

1шт.

2

2852396

BELT TENSIONER

1шт.

3

2852397

IDLER,65mm OD

Roller, Shifter

1шт.

4

4896773

PULLEY

Crankshaft

1шт.

5

2852245

PULLEY,65mm OD

Idler

1шт.

6

4897026

COVER

Front Gear

1шт.

7

REF

INSTRUCTION

Fan Drive

1шт.

8

2854835

WATER PUMP

Assembly, With 78mm Pulley

1шт.

9

2852392

SUPPORT

Water Inlet

1шт.
