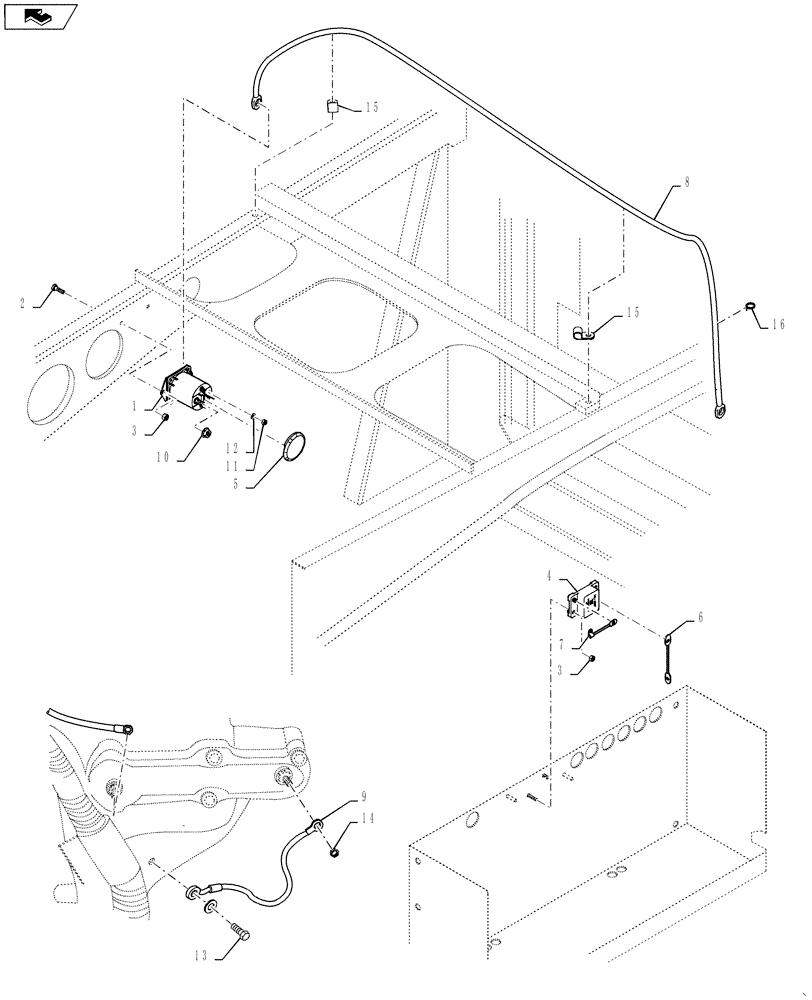

Запчасти Case IH 3330 (10.254.05[02]) - GRID HEATER, GROUP (10) - ENGINE

1

87455571

SOLENOID

200A GRID HEATER

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

3

353308

NUT,M6 x 1.0, Cl 8

4шт.

4

BN69860

CIRCUIT BREAKER

150A

1шт.

5

87341554

COVER

Grid Heater Relay

1шт.

6

87536766

CABLE

BATTERY TO GRID HEATER CKT BEAKER

1шт.

7

87536767

CABLE

GRID CKT BREAKER TO GRID RELAY

1шт.

8

87619397

ELECTRIC CABLE

GRID RELAY TO HEATER

1шт.

9

87554184

CABLE

GRID HEATER TO ENGINE

1шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

11

87016571

NUT,M5, Cl 5

2шт.

12

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

15

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.
