Запчасти Case IH 3330 (90.160.12) - RH COVER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

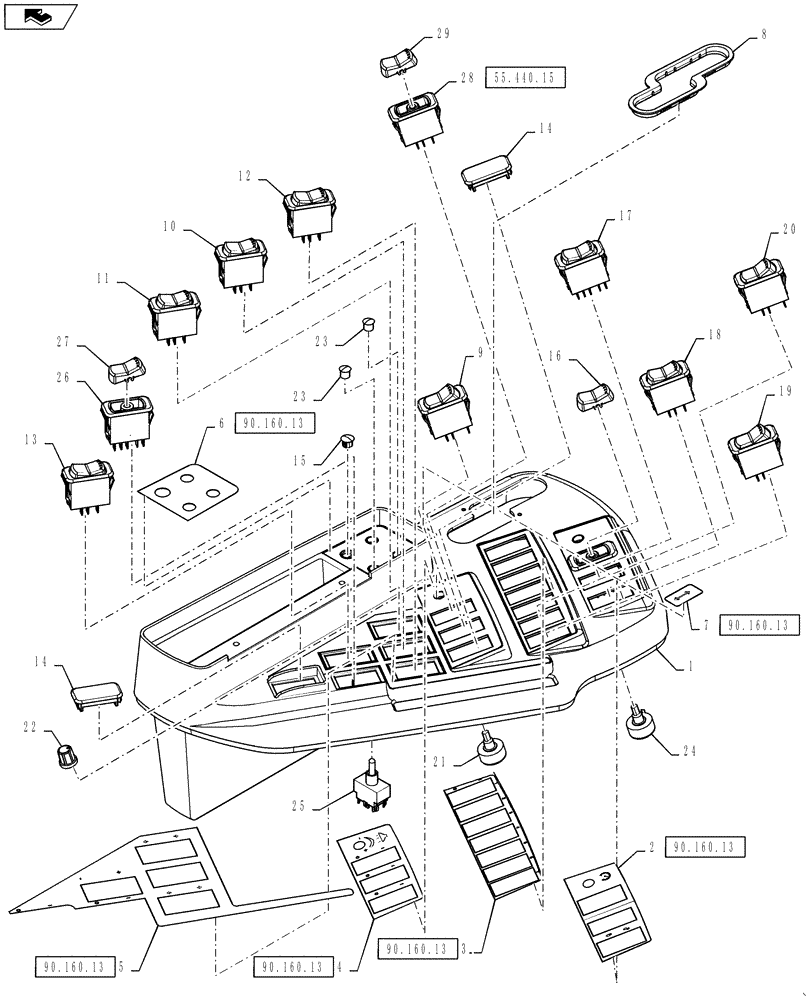

Схема запчастей Case IH 3330 - (90.160.12) - RH COVER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
9
13
7
20
55.440.15
90.160.13
90.160.13
90.160.13
90.160.13
90.160.13
90.160.13
29
27
12
17
14
19
16
28
21
14
2
23
24
22
25
23
11
6
5
1
10
3
4
18
26
8
home

Артикул

Название

Примечание

Количество

1

377999A1

CONSOLE

console control

1шт.

2

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

Refer to 90.160.13

1шт.

3

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

Refer to 90.160.13

1шт.

4

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

Refer to 90.160.13

1шт.

5

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

Refer to 90.160.13

1шт.

6

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

Refer to 90.160.13

1шт.

7

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

Refer to 90.160.13

1шт.

8

128833A2

GUIDE

PROPULSION CONTROL LEVER

1шт.

9

BN321912

SWITCH

assembly, foam activate

1шт.

10

BN321914

SWITCH

Boom Height

1шт.

11

BN321913

SWITCH

boom fold LH

1шт.

12

BN321915

SWITCH

Boom Fold RH

1шт.

13

BN321916

SWITCH

Sparge Pressure

1шт.

14

BN322626

PLUG

Panel, NGR

2шт.

15

282056A1

PLUG

double d

1шт.

16

BN322921

SWITCH

rocker aim command system

1шт.

17

BN321908

SWITCH

AIM COMMAND PRESSURE ADJUST

1шт.

18

BN321909

PRESSURE SWITCH

AIM COMMAND PRESSURE SET

1шт.

19

BN321911

SWITCH

FENCE ROW

1шт.

20

BN321910

SWITCH

BOOM SECTION

7шт.

21

114550A1

POTENTIOMETER,1000 Ohm, 500V

Assembly

1шт.

22

118780A1

KNOB

Console Control

2шт.

23

86625127

PLUG,Dome, .375" hole, Nylon

2шт.

24

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

25

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

26

87388415

SWITCH

NRG, on-none-off

1шт.

27

BN325000

SWITCH

rocker, main power

1шт.

28

BN322908

SWITCH

NRG, ON-OFF-ON

1шт.

29

87397318

SWITCH

ROCKER, ONE TOUCH FOLD

1шт.

Refer to 55.440.15

1шт.

Выбрано товаров: 36
