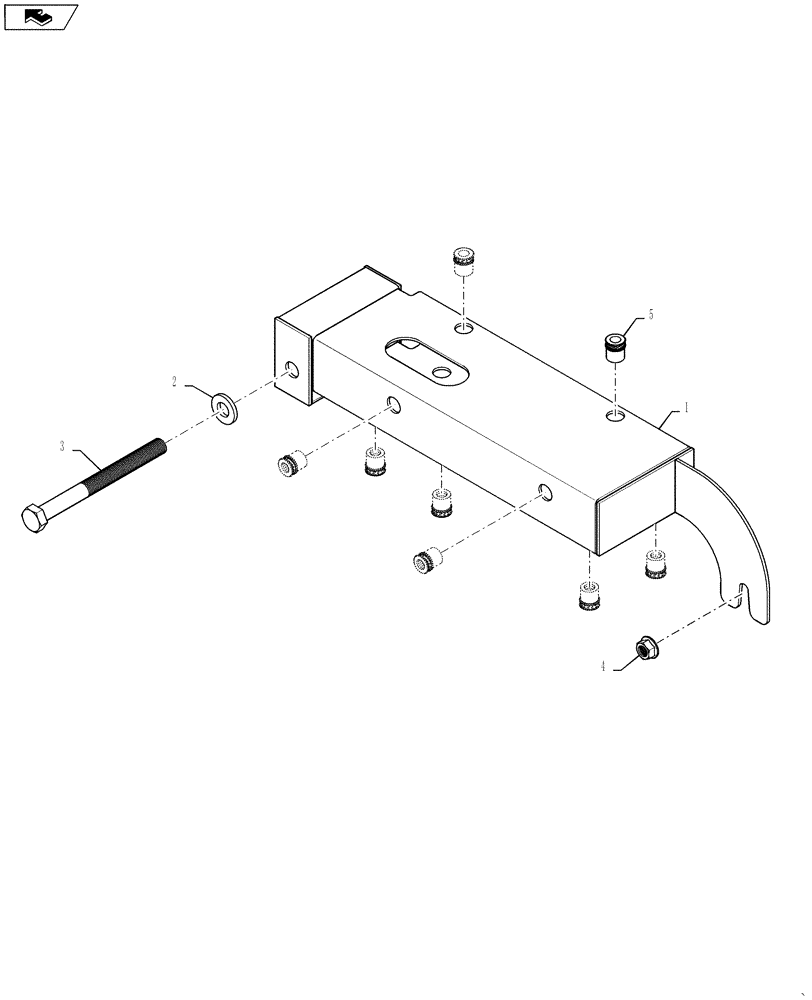

Запчасти Case IH 3330 (90.160.09) - RH CONSOLE MOUNT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

CONSOLE MOUNT

1шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

4

86981461

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

5

408566A1

INSERT,M8

Knurled Threaded

8шт.
